Roof Console Connector End View (View 289)
Roof Console Connector End View (View 289)
BLK/WHT
Front of Roof
On Roof Wire Harness

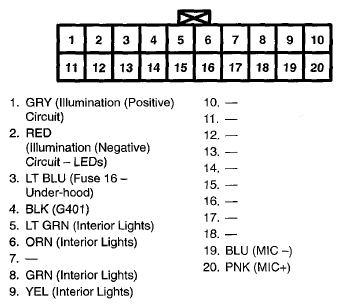

Fig 1: Roof Console Connector Terminal (View 289)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
