C752 Connector End View (View 268)
C752 Connector End View (View 268)
WHT
Left A-pillar
Connects Driver's Door Wire Harness to Dashboard Wire Harness

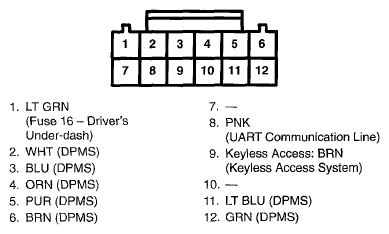

Fig 1: C752 Connector Terminal (View 268)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
