C509 Connector End View (View 307)

• WHT
• Behind Right Kick Panel
• Connects Audio Wire Harness to Right Side Wire Harness

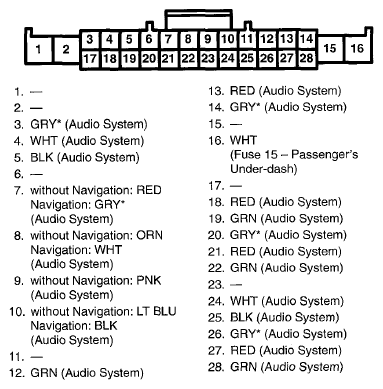

  Fig 1: C509 Connector Terminal (View 307)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
