C410 Connector End View (View 237)
C410 Connector End View (View 237)
WHT
Under Right Side of Dash
Connects Dashboard Wire Harness to Right Side Wire Harness

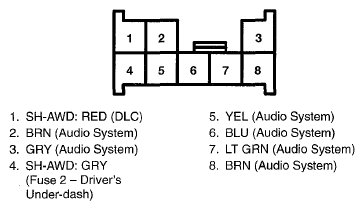

Fig 1: C410 Connector Terminal (View 237)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
