C403 Connector End View (View 292)
C403 Connector End View (View 292)
WHT
Under Middle of Dash
Connects A/C Wire Harness to Dashboard Wire Harness

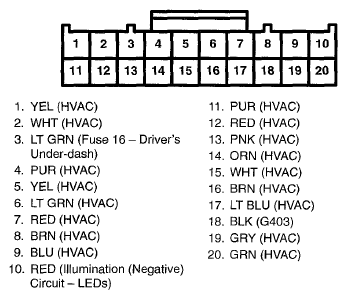

Fig 1: C403 Connector Terminal (View 292)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
