C401 Connector End View (View 286)
C401 Connector End View (View 286)
WHT
Under Left Side of Dash
Connects Left Side Wire Harness to Dashboard Wire Harness

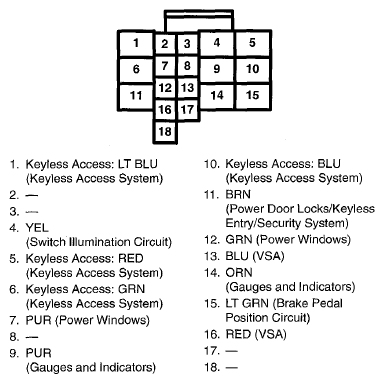

Fig 1: C401 Connector Terminal (View 286)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
