C305 Connector End View (View 185)
C305 Connector End View (View 185)
YEL
Under Left Side of Dash
Connects Left Engine Compartment Wire Harness to Dashboard Wire Harness

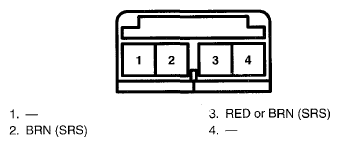

Fig 1: C305 Connector Terminal (View 185)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
