Component Location Index

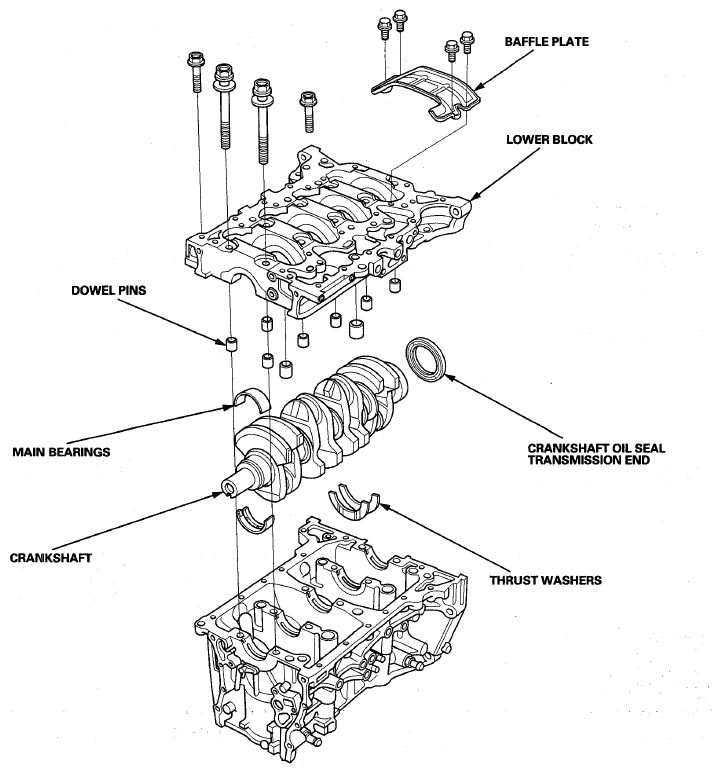

Fig 1: Engine Block Components Location (1 Of 2)
G08059009Courtesy of AMERICAN HONDA MOTOR CO., INC.

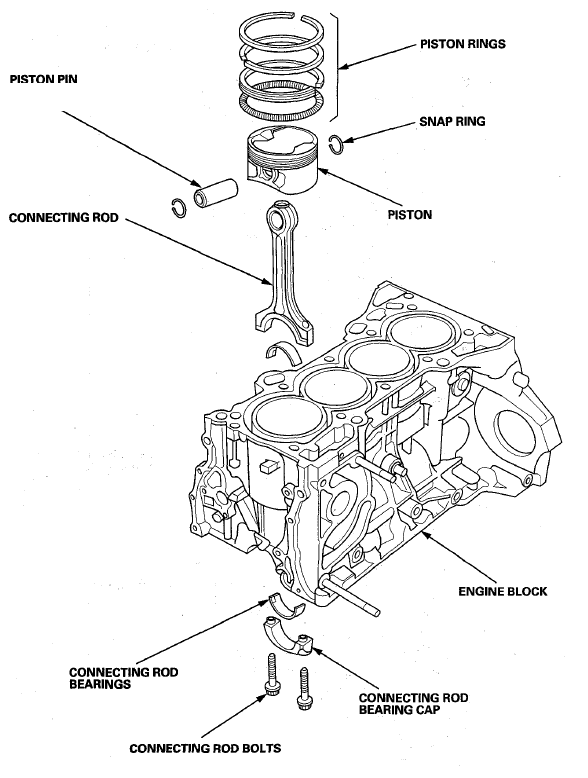

Fig 2: Engine Block Components Location (2 Of 2)
G08059010Courtesy of AMERICAN HONDA MOTOR CO., INC.
