Rear passenger's

  1. Removal the rear door panel (see FRONT DOOR WEATHERSTRIP REPLACEMENT ).
  2. Disconnect the 14P connector from the power window switch (A).

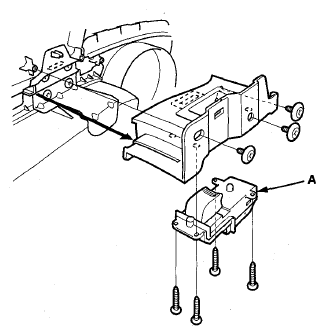

    Fig 1: Identifying Power Window Switch
    G08061316Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the three screws and the power window switch from the door panel.
  4. Remove the four screws from the power window switch.
  5. Install the switch in the reverse order of removal.
