DTC P0731: 1st Gear Incorrect Ratio: Notes

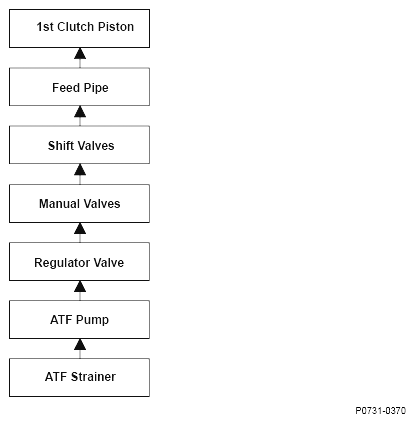

Fig 1: 1st Gear Incorrect Ratio Diagnosis Flow Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

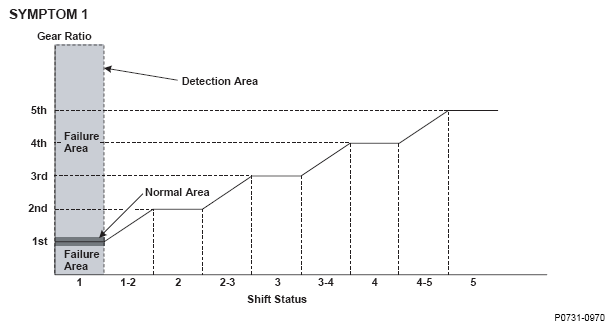

Fig 2: Normal And Detection Area Graph - Symptom 1

Courtesy of AMERICAN HONDA MOTOR CO., INC.

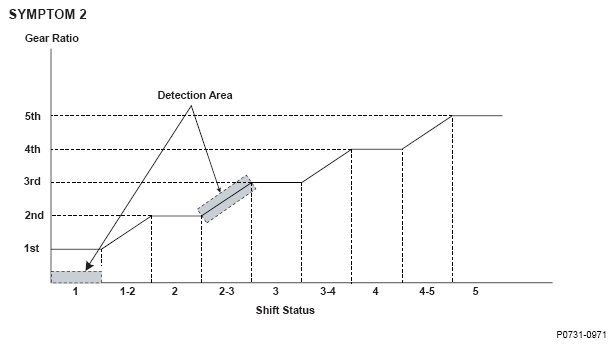

Fig 3: Detection Area Graph - Symptom 2

Courtesy of AMERICAN HONDA MOTOR CO., INC.
