Driving Position Memory Switch (L4: DPMS) Connector End View

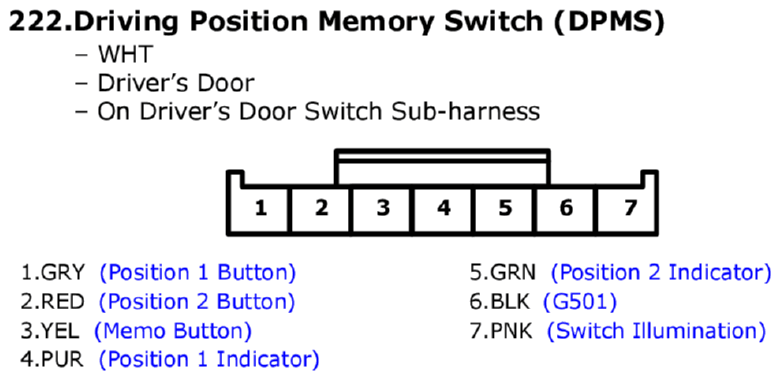

Fig 1: Driving Position Memory Switch (L4: DPMS) Connector End View

GHHW11975

Courtesy of AMERICAN HONDA MOTOR CO., INC.
