Climate Control Unit (L4) Connector End View

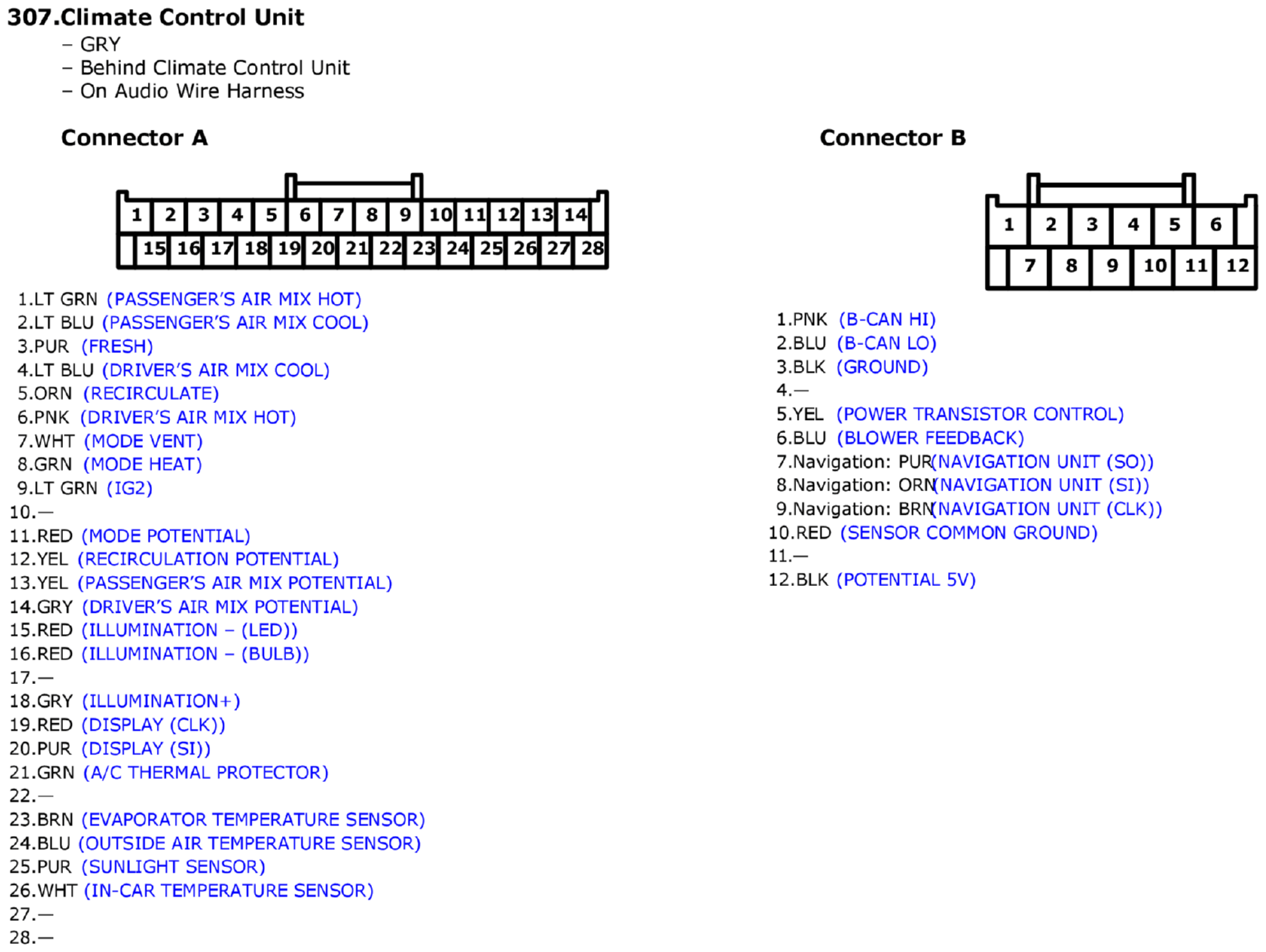

Fig 1: Climate Control Unit (L4) Connector End View

GHHW12060

Courtesy of AMERICAN HONDA MOTOR CO., INC.
