Relays And Control Unit Locations (4-CYL): Dashboard

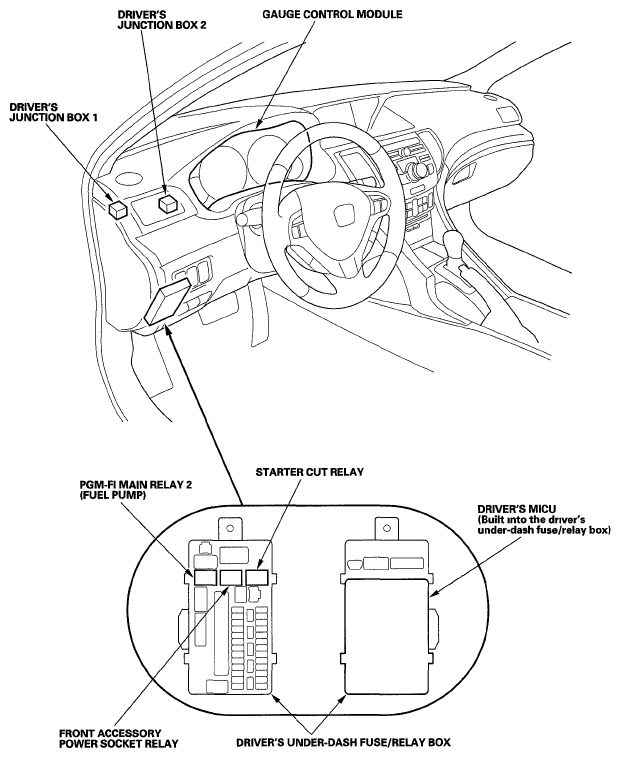

Fig 1: Identifying Relay And Control Unit Locations - Dashboard (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

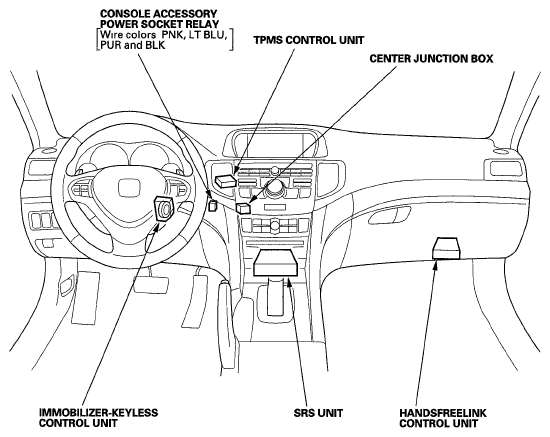

Fig 2: Identifying Relay And Control Unit Locations - Dashboard (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

With Navigation System

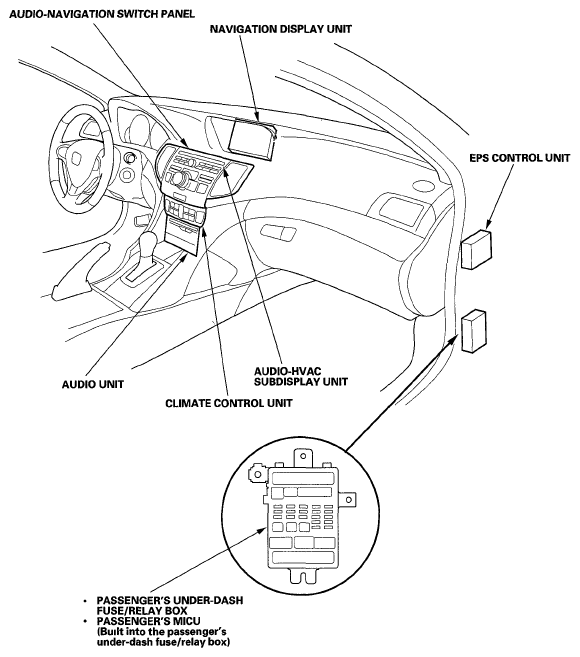

Fig 3: Identifying Relay And Control Unit Locations (Dashboard) - With Navigation System

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without Navigation System

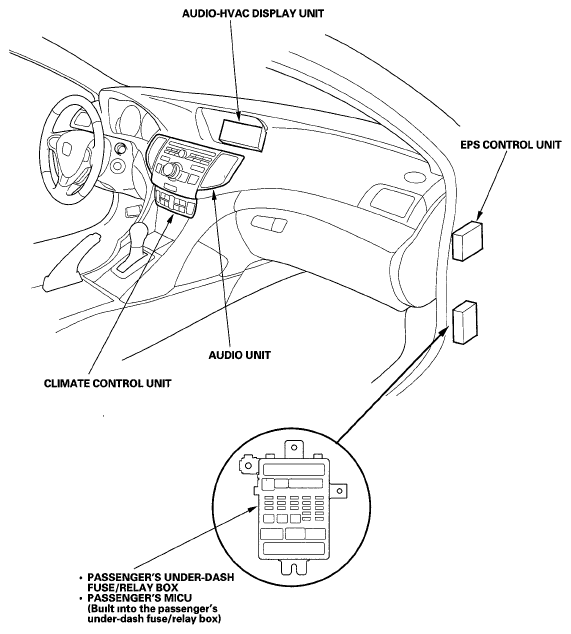

Fig 4: Identifying Relay And Control Unit Locations (Dashboard) - Without Navigation System

Courtesy of AMERICAN HONDA MOTOR CO., INC.
