MAP Sensor (L4) Connector End View
MAP Sensor (L4) Connector End View

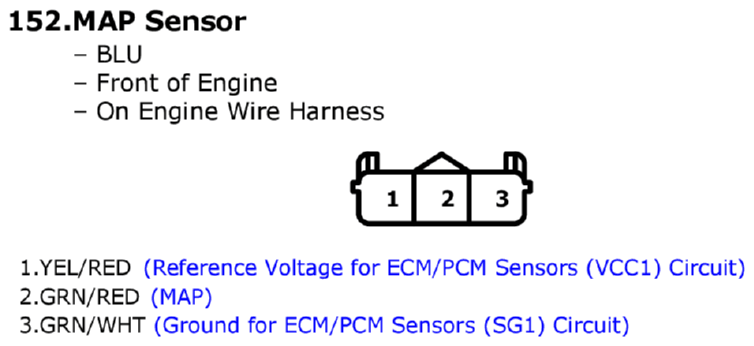

Fig 1: MAP Sensor (L4) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
