Radiator Cap Test

  1. Wait until the engine is cool, then carefully remove the radiator cap (A). Wet the radiator cap seal with engine coolant, then install it on a commercially available pressure tester (B).

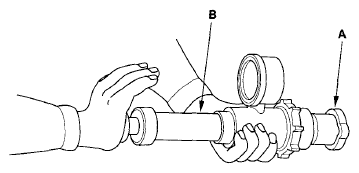

    Fig 1: Checking Radiator Cap For Drop In Pressure
    G06163630Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Apply a pressure of 93 - 123 kPa (0.95 - 1.25 kgf/cm2 , 14 - 18 psi).
  3. Check for a drop in pressure.
  4. If the pressure drops, replace the cap.
