XM Receiver Removal/Installation

  1. Remove the door sill and the right kick panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
  3. Remove the passenger's dashboard undercover (see DASHBOARD SIDE VENT REMOVAL/INSTALLATION ).
  4. Remove the bolt (A) and loosen the bolt (B) from the XM receiver (C).

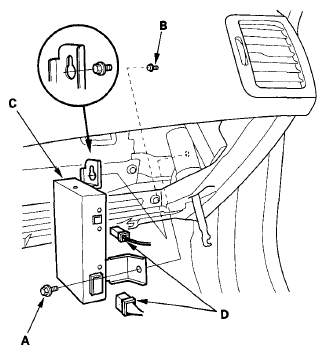

    Fig 1: Identifying XM Receiver Bolt And Connectors
    G06223167Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the connectors (D) and pull out the XM receiver.
  6. Lower the XM receiver through the footwell area.
  7. Install the XM receiver in the reverse order of removal.
