Speaker Check Mode
NOTE:
- Not all self-diagnostic functions appear on all models.
- There may be other self-diagnostic functions that are for factory use only.
- Turn the ignition switch to ON (II). Turn the audio unit off.

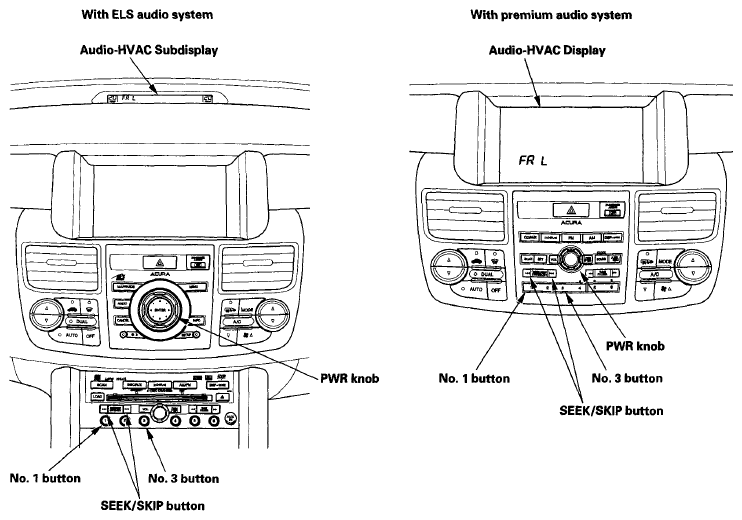

- Push and hold the No. 1 and No. 3 buttons. While holding the buttons, push the PWR knob to on. Release the buttons and the speaker check mode begins. A tone test should sound from one speaker.NOTE: Make sure the volume is set to a normal or sightly higher than normal volume and set the balance and fader to the center position.
- Each time you press the SEEK/SKIP button, the test moves to the next speaker in the order listed.
Display Specifications
(SEEK/SKIP button (right arrows ) is pressed: (1)→(2)→(3)→(4)→(5)→(6)→(7)→
(SEEK/SKIP button (left arrows ) is pressed: (1)→(7)→(6)→(5)→(4)→(3)→(2)→
SPEAKER DISPLAYED SEGMENTS REFERENCESpeaker Displayed Segments Remarks (1) Driver's Door Speaker and Tweeter FRL You should hear a high frequency tone (2) Front Center Speaker(1) FRCNT You should hear a high frequency tone (3) Front Passenger's Door Speaker and Tweeter FR R (4) Right Rear Door Speaker and Satellite Speaker(1) RRR You should hear a high frequency tone (5) Subwoofer SW You should hear a low frequency tone (6) Left Rear Door Speaker and Satellite Speaker(1) RRL You should hear a high frequency tone (7) All Speakers ALL - You should hear a high frequency tone
- The subwoofer does not sound atone
(1) With ELS Audio System NOTE: Any other diagnostic screens are shown for factory use only. - The speaker check mode ends when you turn the audio unit off, or turn the ignition switch to LOCK (0).
