Audio Switch Panel Removal/Installation

  1. Remove the center panel (see CENTER PANEL REMOVAL/INSTALLATION ).
  2. Remove the screws (A), then pull out the audio switch panel (B) from the center panel (C).

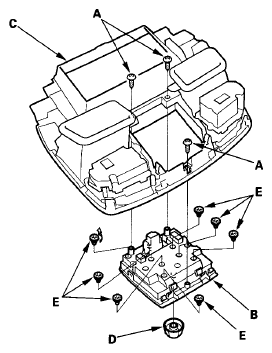

    Fig 1: Identifying Audio Switch Panel, Center Panel And Screws
    G06223168Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. If necessary, remove the dial knob (D) and bulbs (E).
  4. Install the audio switch panel in the reverse order of removal.
