System Structure: Wheels

The TPMS will not work unless TPMS type wheels are installed on the vehicle. There are six different type of wheels used. The original equipment wheels have a "TPMS" mark (A) on them and are counterweighted (B) the opposite of the tire pressure sensor (C), and counterbalance the weight of the sensor.

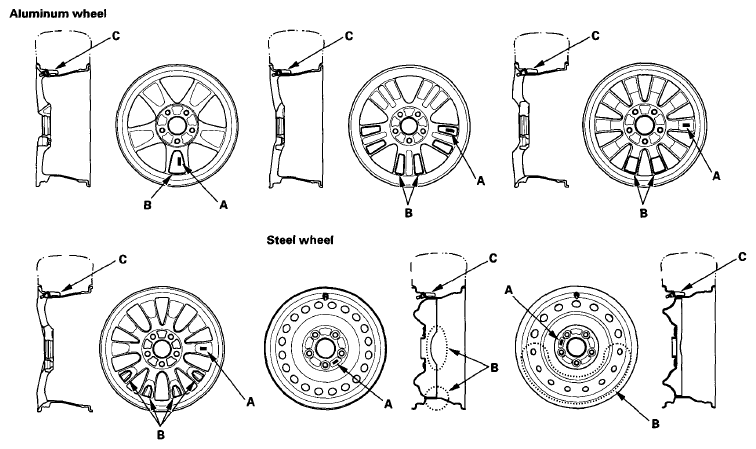

Fig 1: Identifying Aluminum Wheel And Steel Wheel

Courtesy of AMERICAN HONDA MOTOR CO., INC.
