Rear Bumper Reflector Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands
Take care not to scratch the rear bumper and the body

Remove the rear bumper (see REAR BUMPER REMOVAL/INSTALLATION )
Remove the screws, and release the hooks (A), then remove the rear bumper reflector (B) from the rear bumper (C)

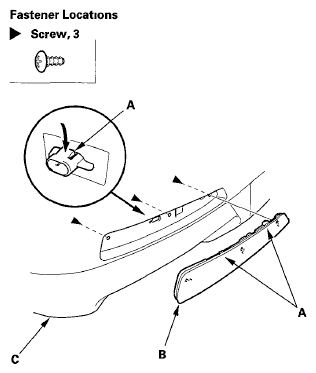

Fig 1: Identifying Rear Bumper Reflector And Rear Bumper
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the reflector in the reverse order of removal, and push the hooks into place securely
