ECM/PCM Circuit Diagram

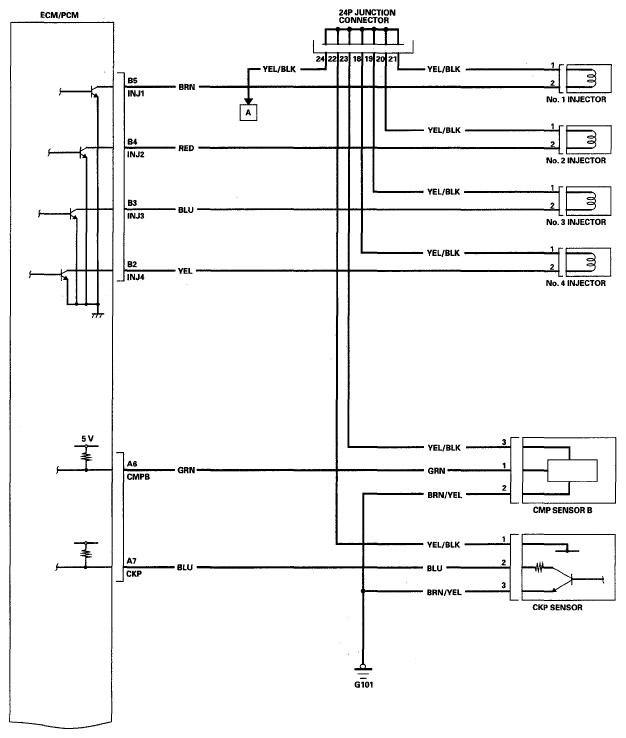

Fig 1: ECM/PCM Circuit Diagram (1 Of 12)

G05490405

Courtesy of AMERICAN HONDA MOTOR CO., INC.

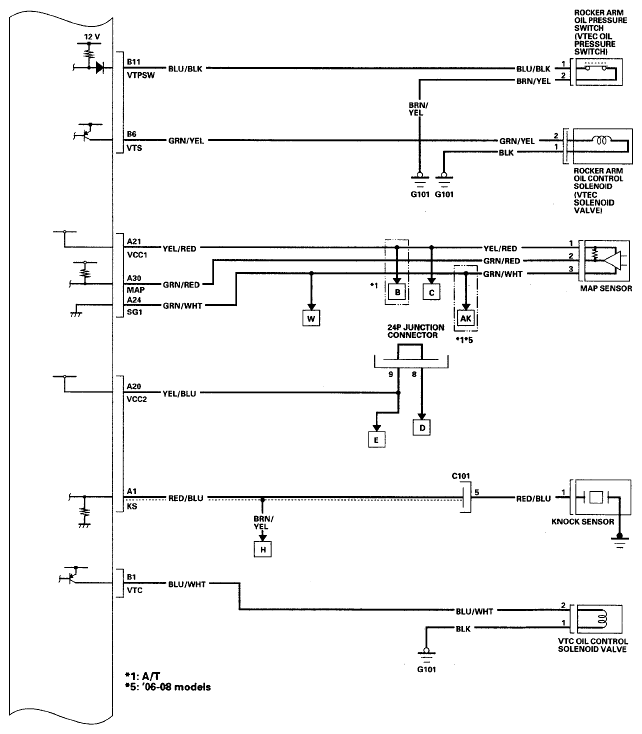

Fig 2: ECM/PCM Circuit Diagram (2 Of 12)

G05490406

Courtesy of AMERICAN HONDA MOTOR CO., INC.

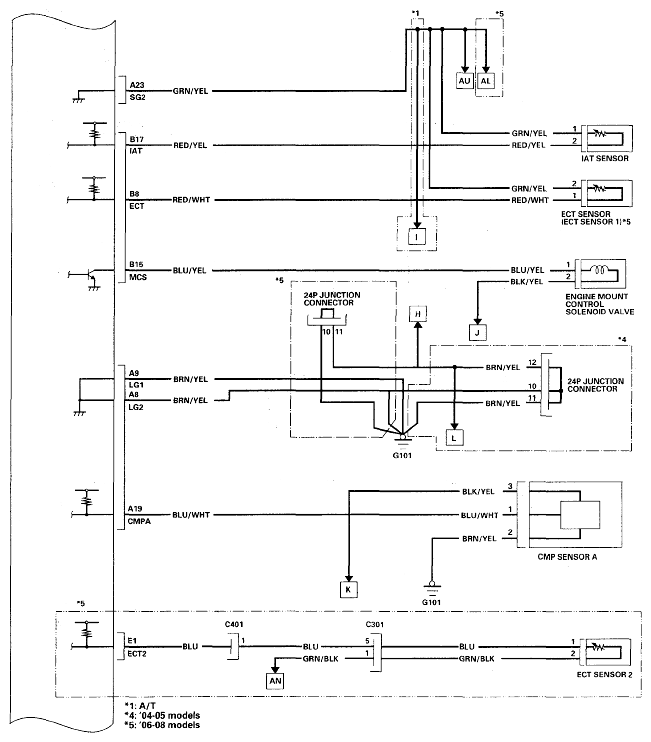

Fig 3: ECM/PCM Circuit Diagram (3 Of 12)

G05490407

Courtesy of AMERICAN HONDA MOTOR CO., INC.

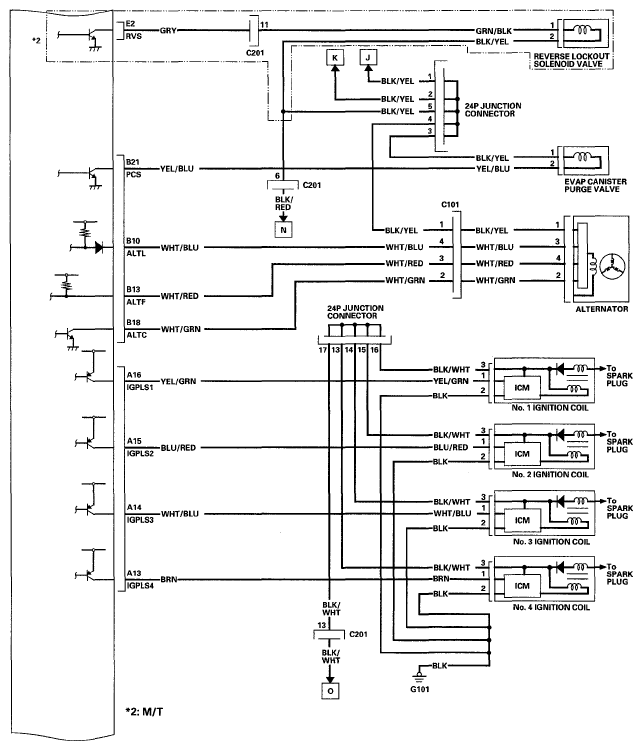

Fig 4: ECM/PCM Circuit Diagram (4 Of 12)

G05490408

Courtesy of AMERICAN HONDA MOTOR CO., INC.

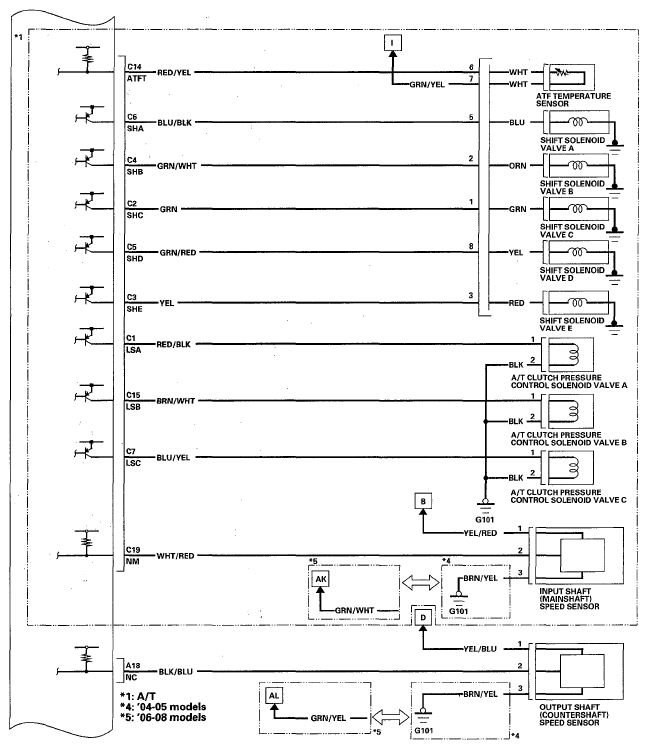

Fig 5: ECM/PCM Circuit Diagram (5 Of 12)

G05490409

Courtesy of AMERICAN HONDA MOTOR CO., INC.

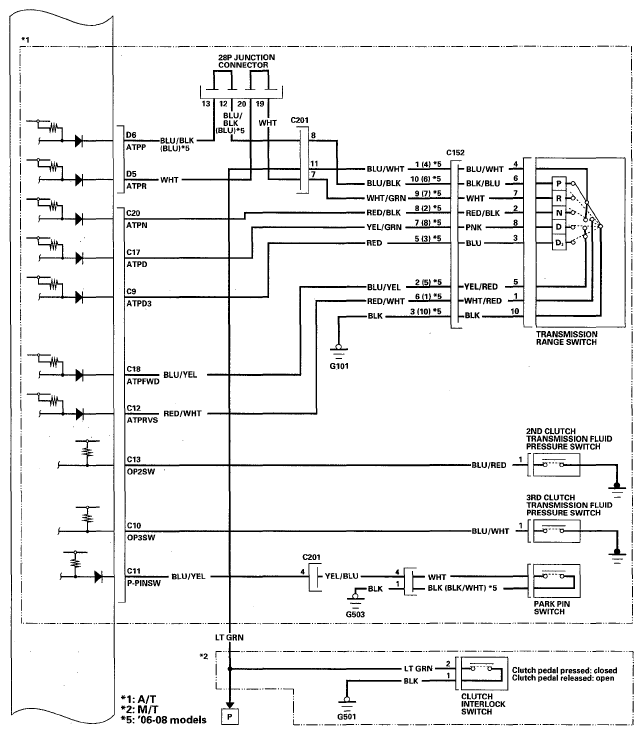

Fig 6: ECM/PCM Circuit Diagram (6 Of 12)

G05490410

Courtesy of AMERICAN HONDA MOTOR CO., INC.

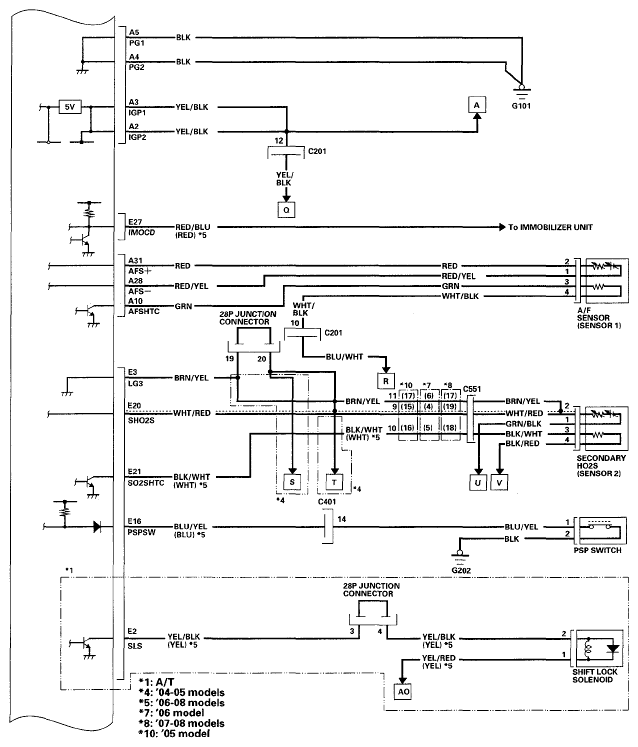

Fig 7: ECM/PCM Circuit Diagram (7 Of 12)

G05490411

Courtesy of AMERICAN HONDA MOTOR CO., INC.

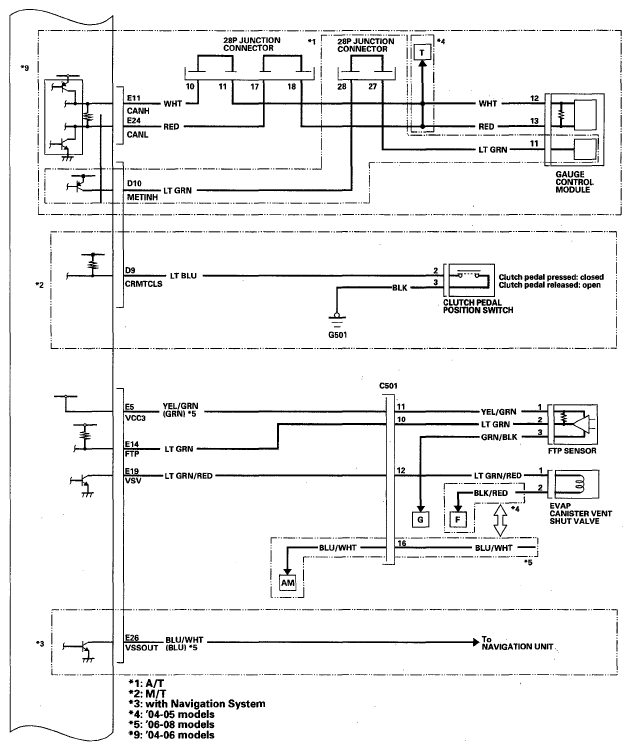

Fig 8: ECM/PCM Circuit Diagram (8 Of 12)

G05490412

Courtesy of AMERICAN HONDA MOTOR CO., INC.

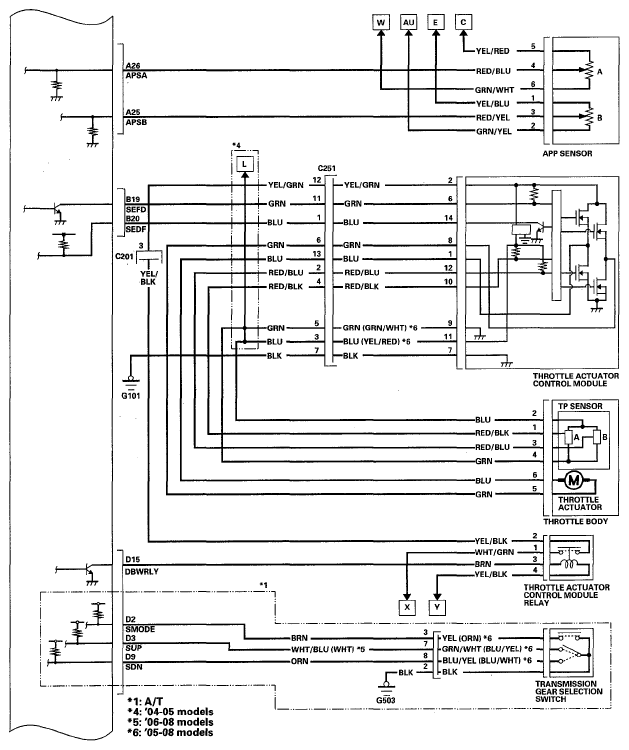

Fig 9: ECM/PCM Circuit Diagram (9 Of 12)

G05490413

Courtesy of AMERICAN HONDA MOTOR CO., INC.

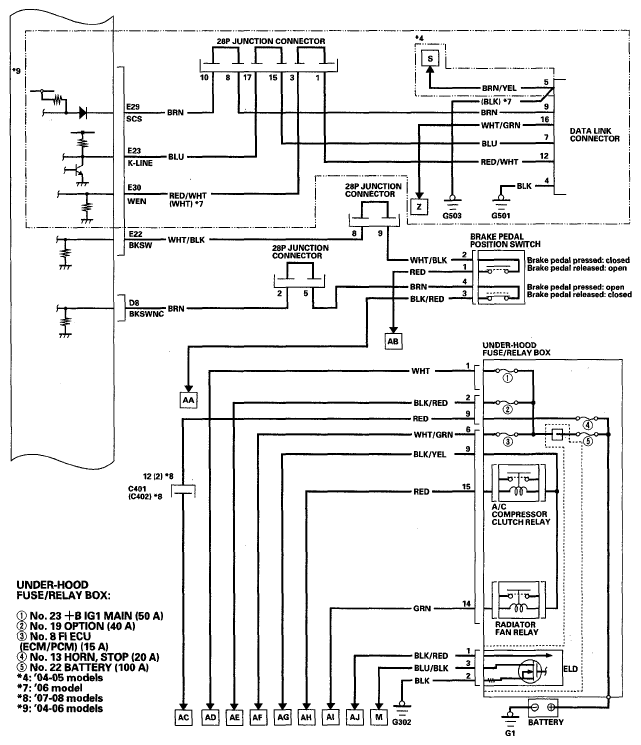

Fig 10: ECM/PCM Circuit Diagram (10 Of 12)

G05490414

Courtesy of AMERICAN HONDA MOTOR CO., INC.

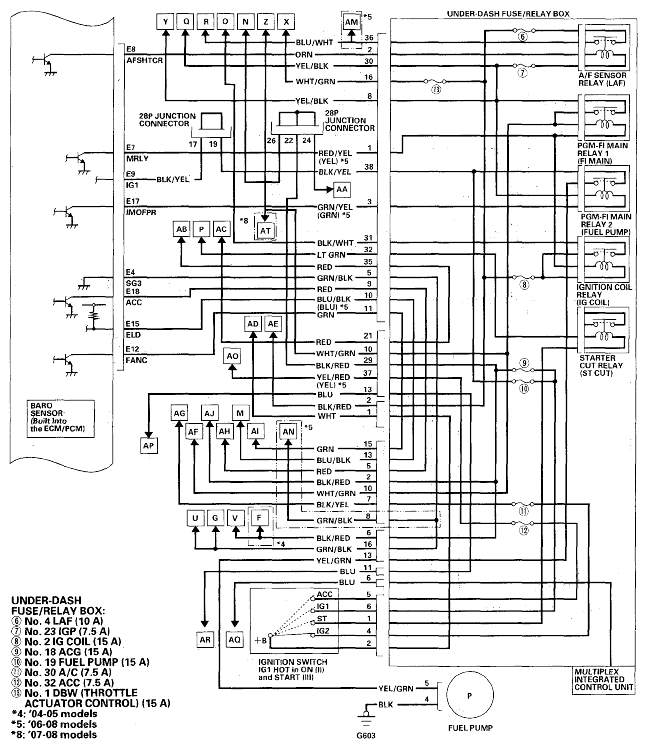

Fig 11: ECM/PCM Circuit Diagram (11 Of 12)

G05490415

Courtesy of AMERICAN HONDA MOTOR CO., INC.

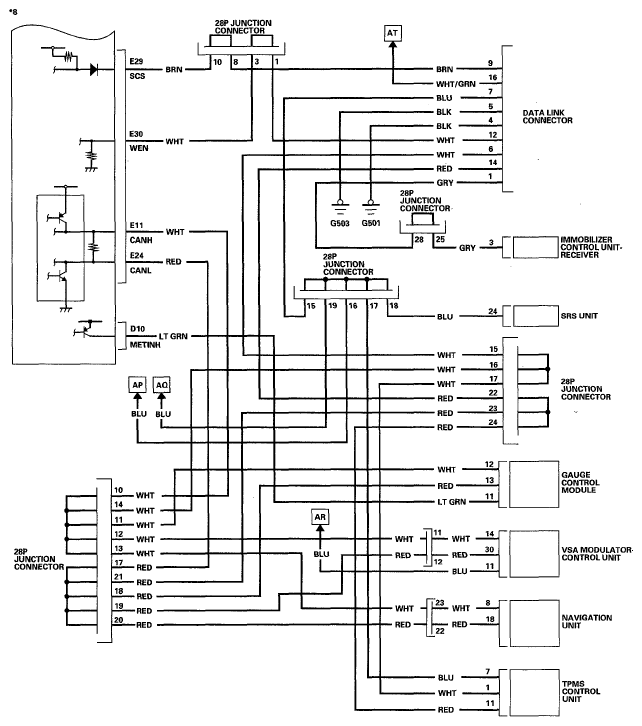

Fig 12: ECM/PCM Circuit Diagram (12 Of 12)

G05490416

Courtesy of AMERICAN HONDA MOTOR CO., INC.
