Steering Linkage and Gearbox Inspection

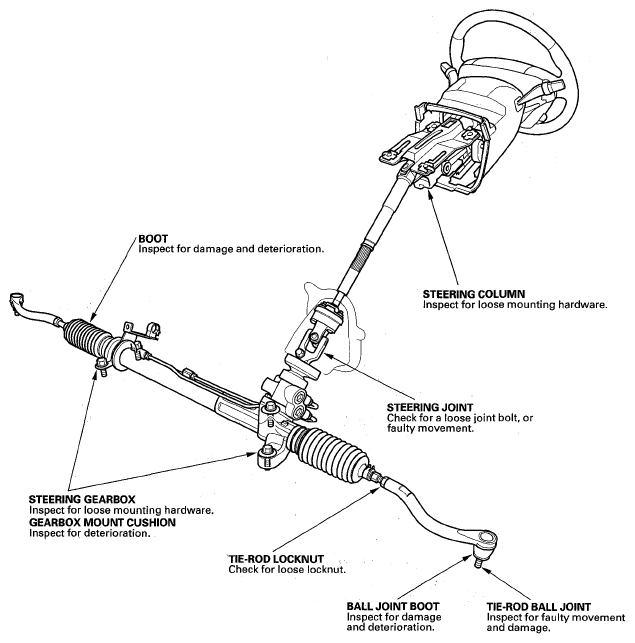

Fig 1: Identifying Steering Linkage And Gearbox Components

G05461476

Courtesy of AMERICAN HONDA MOTOR CO., INC.
