Door and Seat

Driver's Door

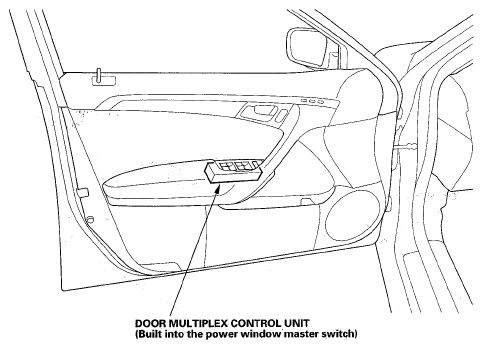

Fig 1: Identifying Door And Seat Relay And Control Locations - Dirver's Door

G05462564

Driver's Seat

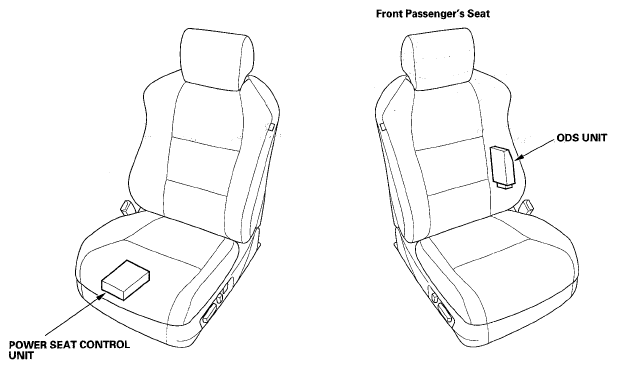

Fig 2: Identifying Door And Seat Relay And Control Locations - Driver's Seat

G05462565
