Rear Map Light Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully pry off the lens (A) with a small screwdriver.

    Rear Map Light: 5 W x 2

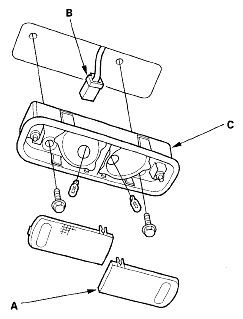

    Fig 1: Identifying Rear Map Light Lens And 3P Connector
    G05462724Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the two mounting bolts.
  3. Disconnect the 3P connector (B) from the rear map light (C).
  4. Install in the reverse order of removal.
