DTC P0767: Shift Solenoid Valve D Stuck ON: Notes

Fig 1: DTC P0767 Shift Solenoid Valve D Operating Conditions

G04836344

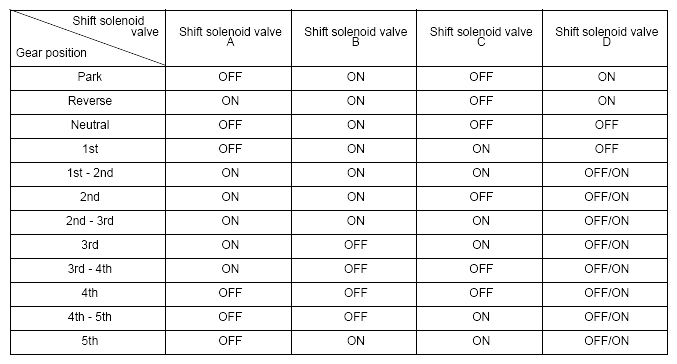

Fig 2: Shift Solenoid Valve Driving Signal Combination Table

G04836348
