DTC P0756: Shift Solenoid Valve B Stuck OFF: Notes

Fig 1: DTC P0756 Shift Solenoid Valve B Operating Conditions

Fig 2: Gear Position Vs Shift Status Graph

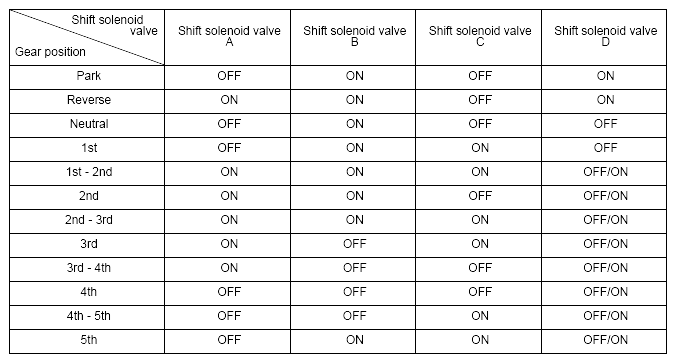

Fig 3: Shift Solenoid Valve Driving Signal Combination Table
