DTC P0752: Shift Solenoid Valve A Stuck ON: Notes

Fig 1: DTC P0752 Shift Solenoid Valve A Operating Conditions

Fig 2: Gear Position Vs Shift Status Graph

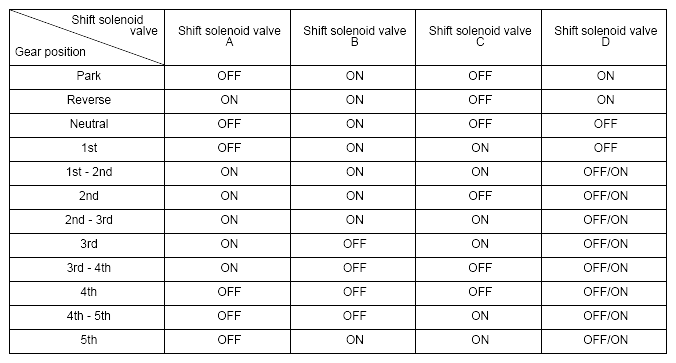

Fig 3: Shift Solenoid Valve Driving Signal Combination Table
