Component Location Index

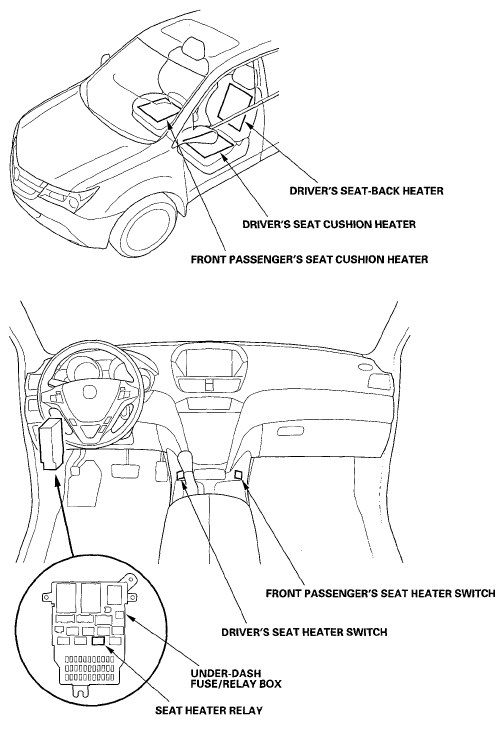

Fig 1: Identifying Seat Heaters Component Location (1 Of 2)
G05488181Courtesy of AMERICAN HONDA MOTOR CO., INC.

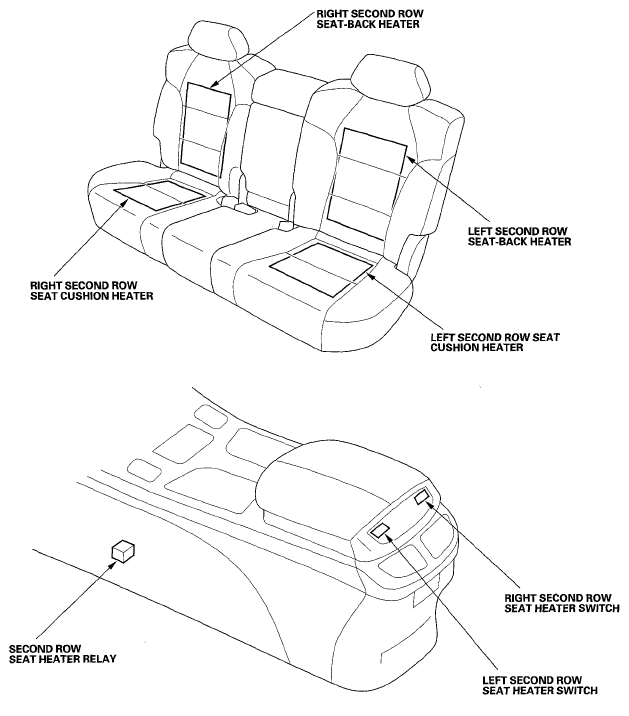

Fig 2: Identifying Seat Heaters Component Location (2 Of 2)
G05488182Courtesy of AMERICAN HONDA MOTOR CO., INC.
