Fluid Leakage Inspection

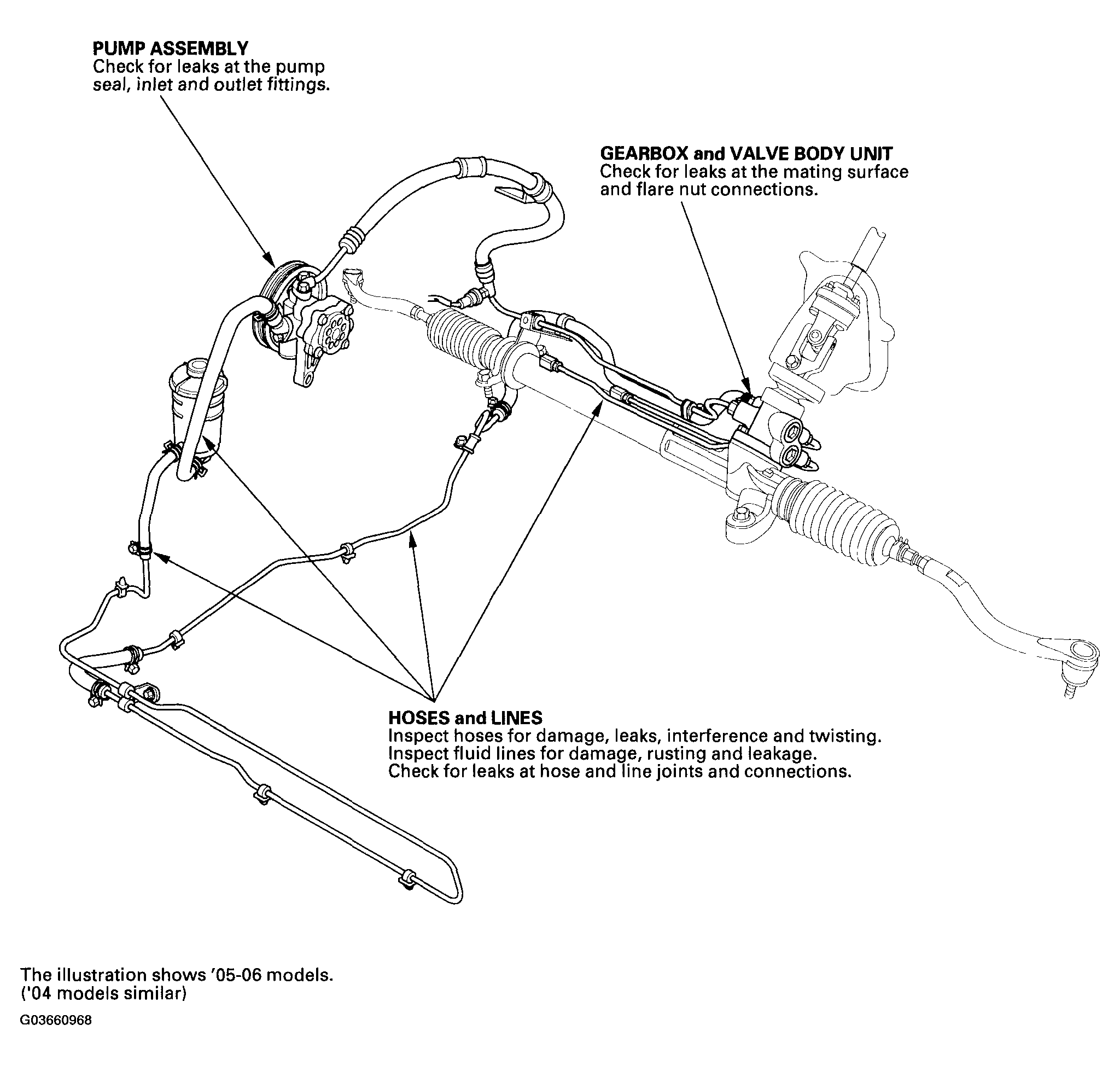

Fig 1: Inspecting Fluid Leakage

G03660968

Courtesy of AMERICAN HONDA MOTOR CO., INC.
