Circuit Diagram

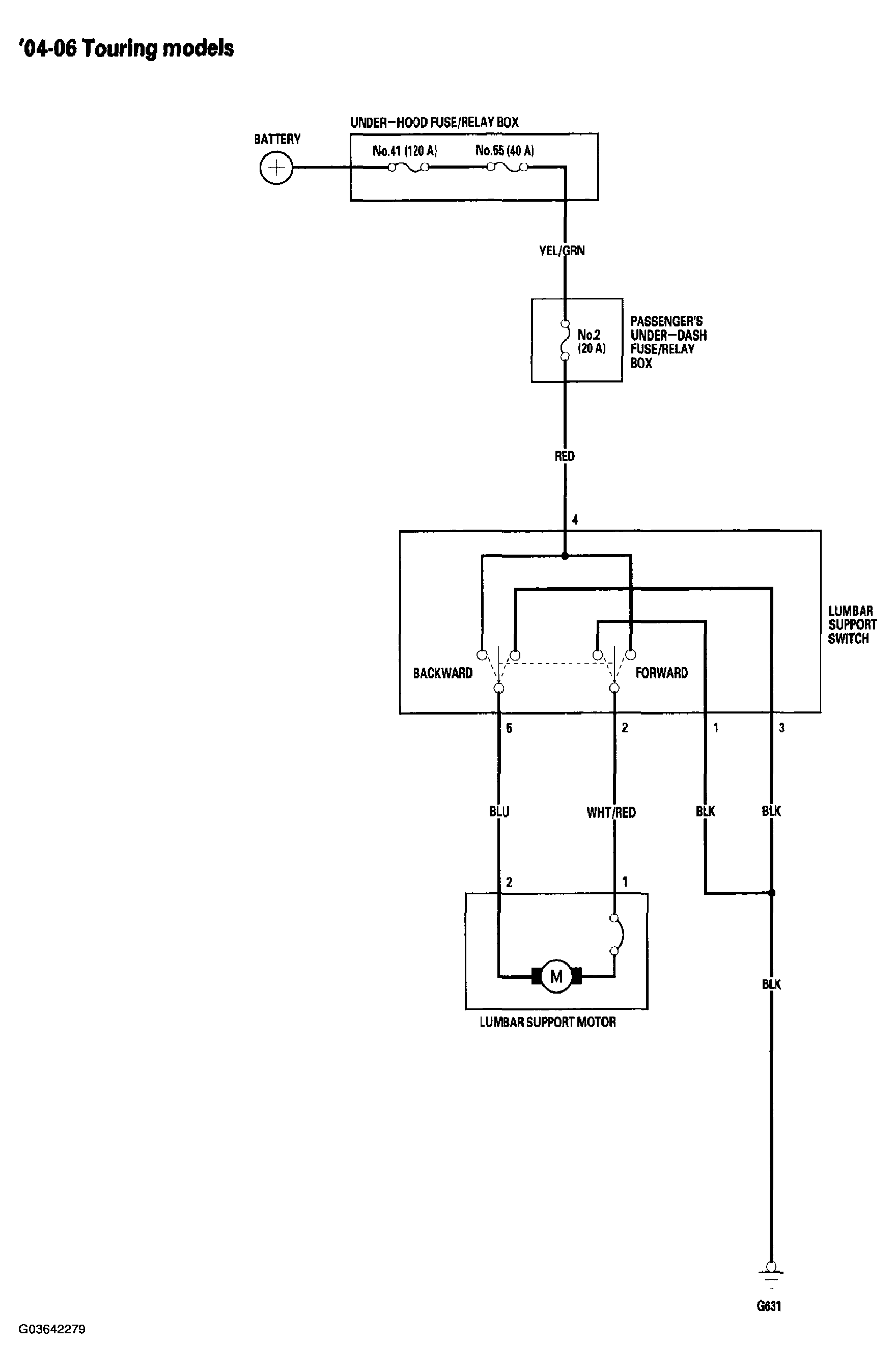

Fig 1: Circuit Diagram - Power Lumbar Support ('04-06 Touring Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
