Tire Pressure Sensor Replacement: Removal: Notes

  1. Raise the appropriate end of the vehicle, and support it with safety stands in the proper locations (see LIFT AND SUPPORT POINTS ).
  2. Remove the wheel with the faulty sensor.
  3. Remove the tire valve cap and the valve core, and let the tire deflate.
  4. Remove any balance weights, and then break the bead loose form the wheel with a commercially available tire changer (A).
    NOTE: Note these items to avoid damaging the tire pressure sensor:
    • Do the outside of the wheel first.

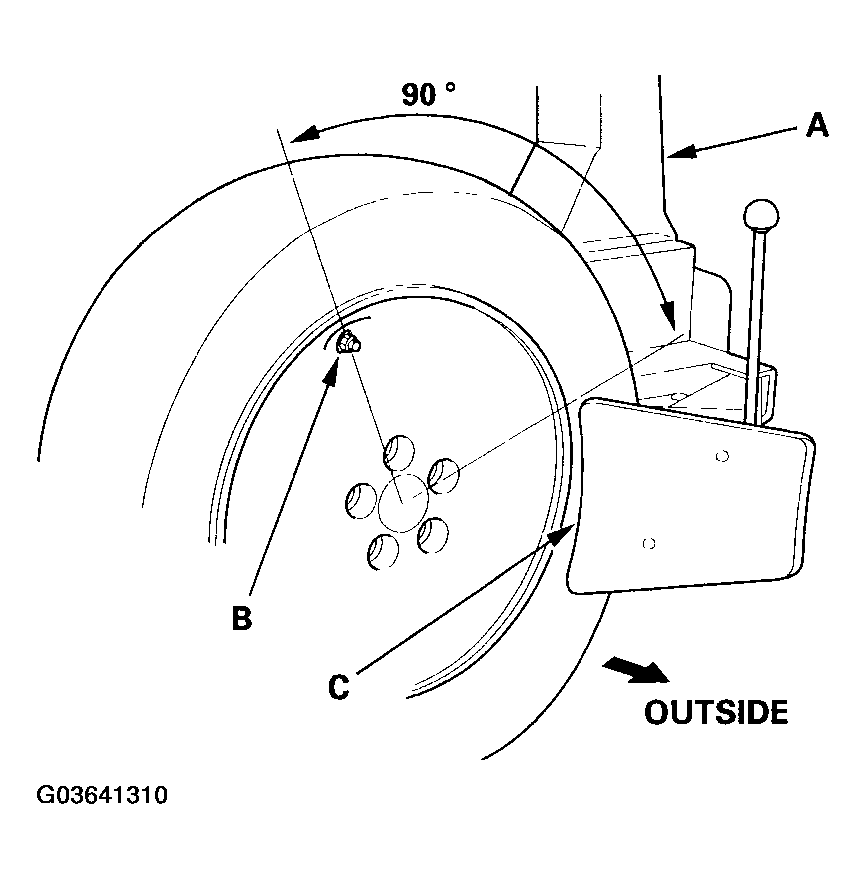

    • Position the wheel as shown so the valve stem (B) is 90 degrees from the bead breaker (C) as shown.
    • Do not position the bead breaker of the tire changer too close to the rim.
      Fig 1: Positioning Wheel
      G03641310Courtesy of AMERICAN HONDA MOTOR CO., INC.

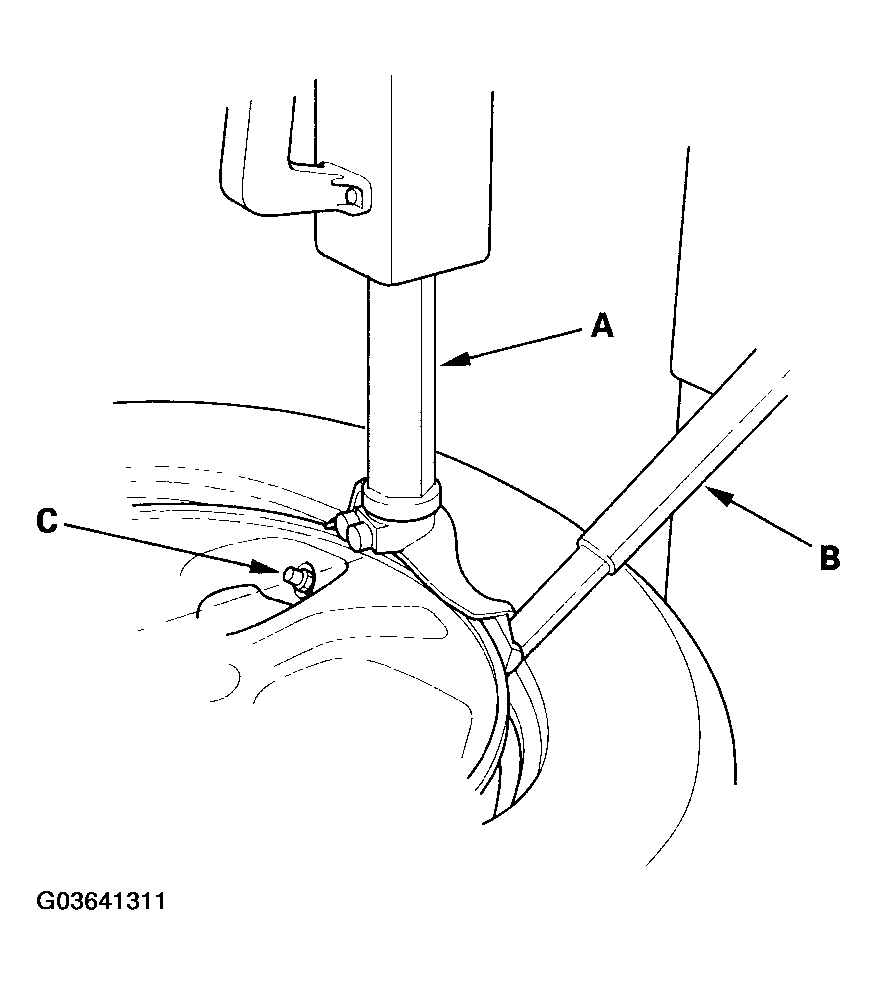

  5. Position the wheel so the tire machine (A) and tire iron (B) are next to the valve stem (C) and will move away from it when the machine starts. Then remove the tire from the wheel.
    Fig 2: Positioning Wheel
    G03641311Courtesy of AMERICAN HONDA MOTOR CO., INC.

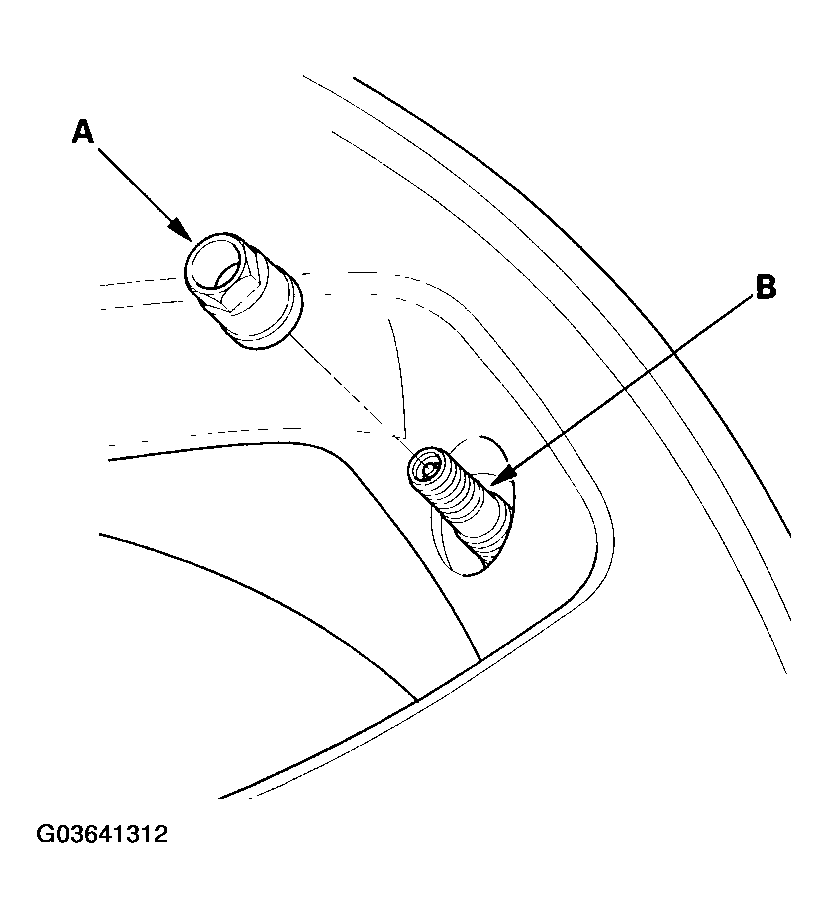

  6. Remove and discard the valve stem nut (A) then remove the tire pressure sensor and valve stem (B) from the wheel.
    NOTE: Use a new nut and a new valve stem on reassembly.
    Fig 3: Removing Valve Stem Nut
    G03641312Courtesy of AMERICAN HONDA MOTOR CO., INC.

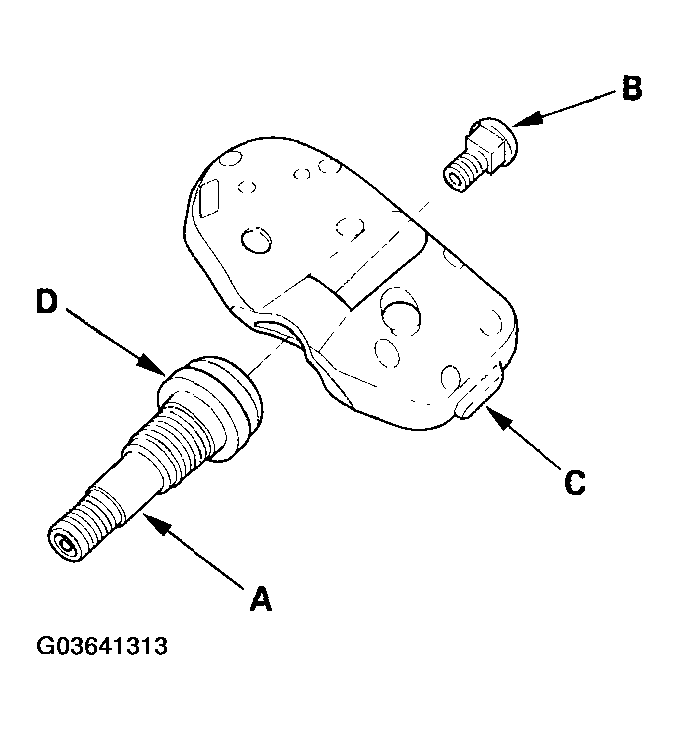

  7. Remove and discard the valve stem (A) and the screw (B) from the tire pressure sensor (C).
    NOTE: The valve stem grommet (D) might stay in the wheel; make sure you remove it.
    Fig 4: Removing Valve Stem And Screw From Tire Pressure Sensor
    G03641313Courtesy of AMERICAN HONDA MOTOR CO., INC.
