System Structure: Wheels

TPMS will not work unless TPMS type wheels are installed on the vehicle. The original equipment wheels have a "TPMS" mark on them (A) and a counterweight (B) cast into the opposite side of the rim to balance the weight of the sensor (C).

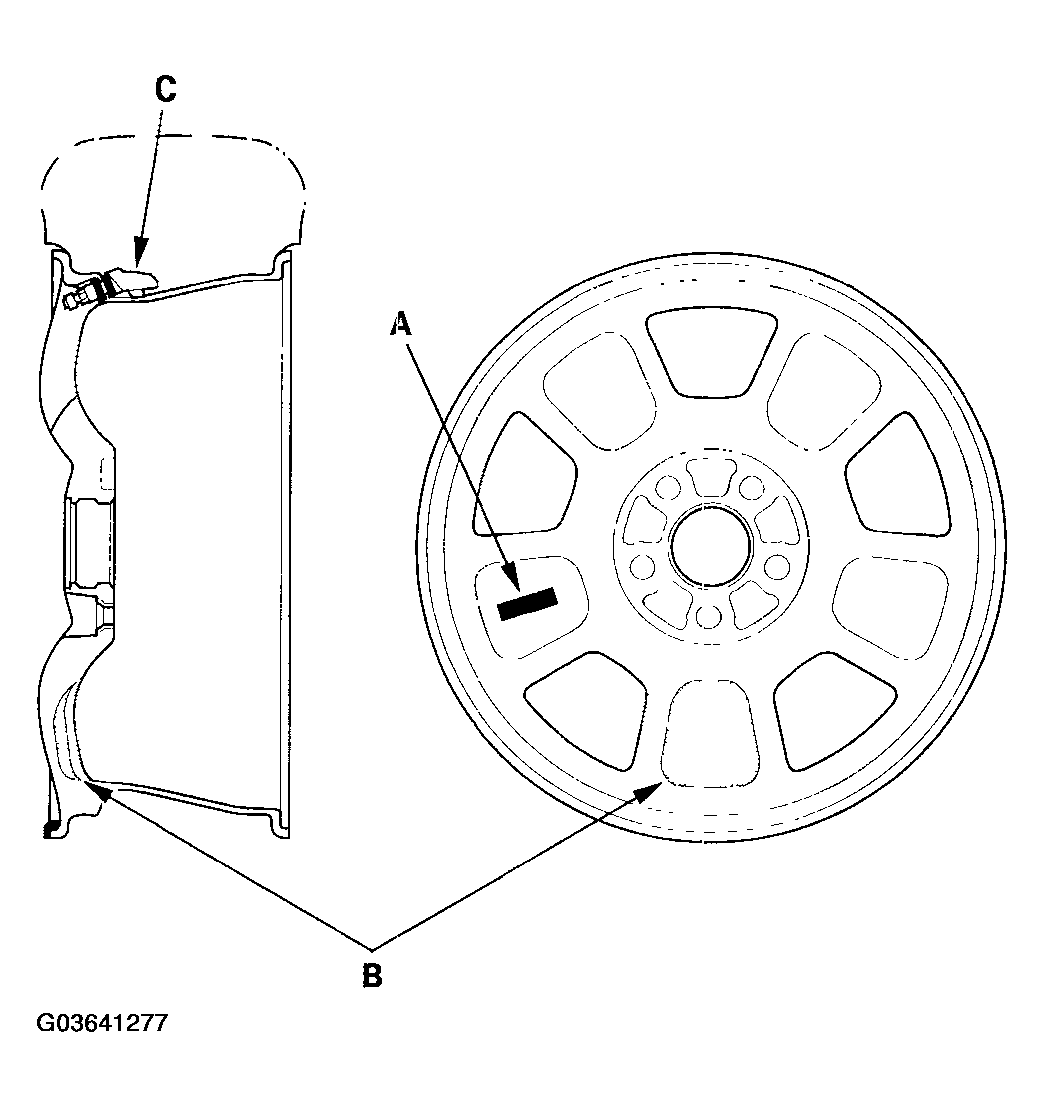

Fig 1: Identifying TPMS Mark, Counterweight And Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
