Acura
>>
2004
>>
MDX Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
HANDSFREELINK System
>>
Component Location Index
Component Location Index

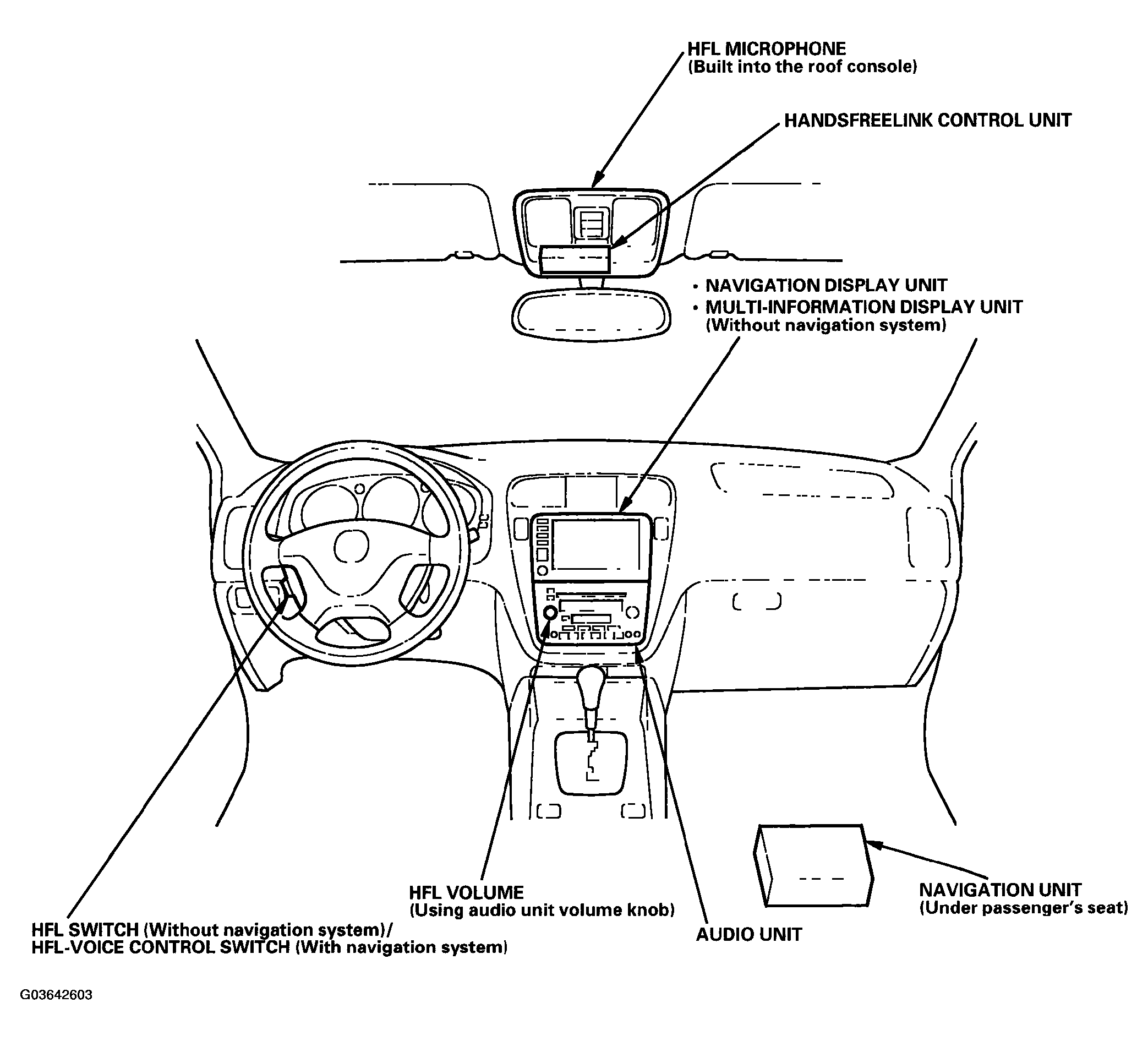

Fig 1: Identifying HandsFreeLink System Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
