4th Clutch Transmission Fluid Pressure Switch Replacement

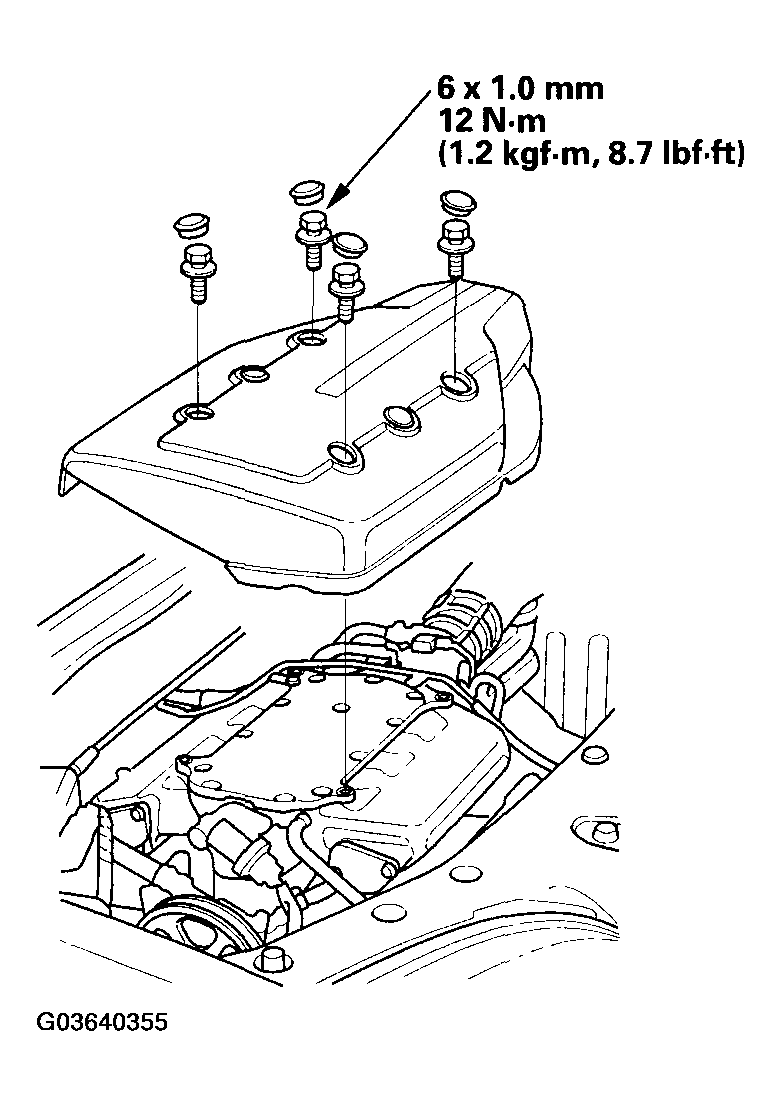

- Remove the intake manifold cover.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

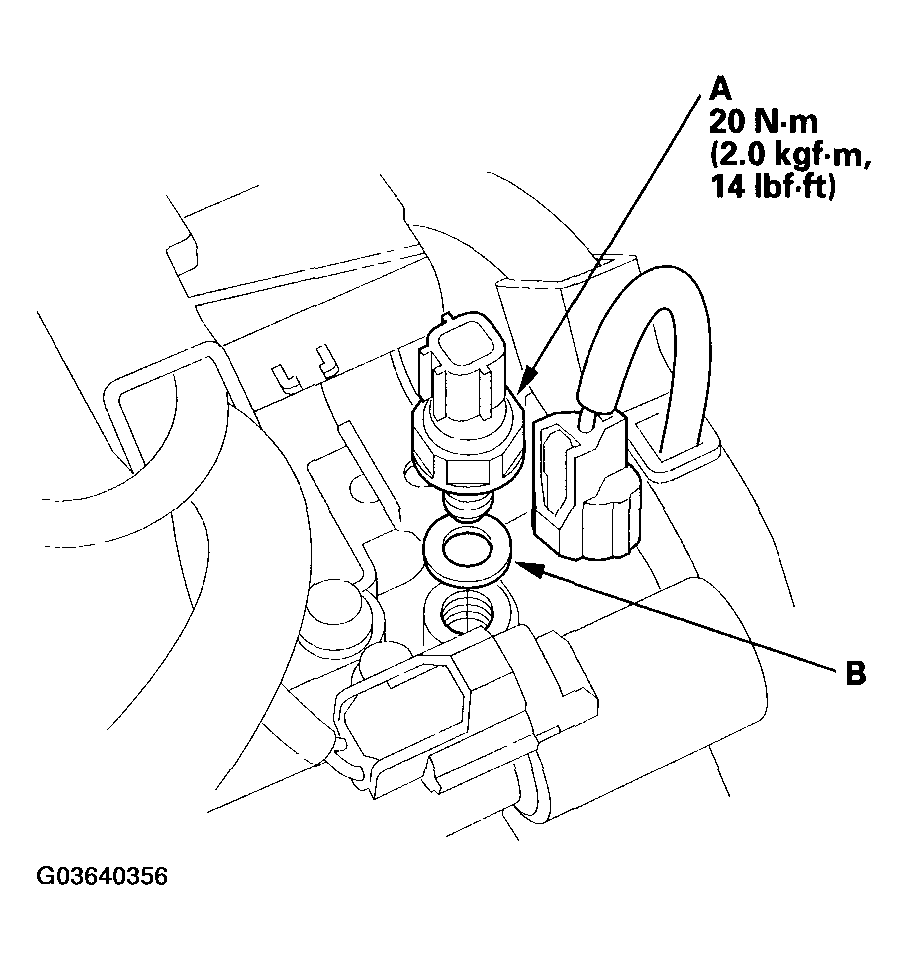

- Disconnect the 4th clutch transmission fluid pressure switch brown connector.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Make sure there is no water, oil, dust, or foreign particles inside the connectors.
- Install the new 4th clutch transmission fluid pressure switch (A) with a new sealing washer (B), and tighten the switch to the specified torque.
- Connect the connector securely.
- Reinstall the intake manifold cover.
