Initiator Replacement: Front

NOTE: Make sure the initiator mounting bracket is not bent or twisted as this may affect its communication with the control unit and the tire pressure sensor.
  1. Raise the front of the vehicle, and support it with safety stands in the proper locations (see LIFT AND SUPPORT POINTS ).
  2. Remove the front wheel.
  3. Remove the front inner fender (see FRONT INNER FENDER REPLACEMENT ).
  4. Disconnect the initiator connector (A).

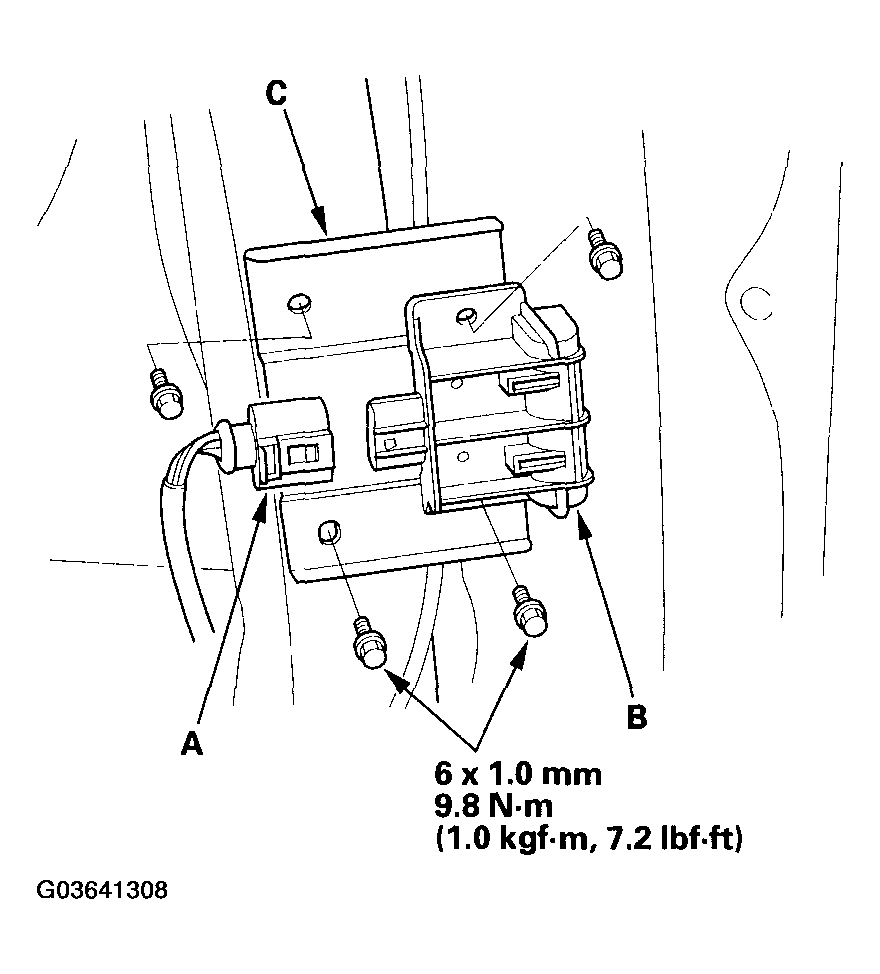

    Fig 1: Disconnecting Initiator Connector (Front)
    G03641308Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the initiator (B) with the bracket (C) from the inner side of the wheel well.
  6. Remove the initiator from the bracket.
  7. Install the initiator in the reverse order of removal.
