Removal & Installation: Strut: Installation

WARNING: This page is about a different car, the 2003 Acura 3.2TL, 2002 Acura 3.2TL, 2001 Acura 3.2TL, 2000 Acura 3.2TL, and 1999 Acura 3.2TL. However, it is still accessible from the selected car via links, so may be relevant.

Loosely install strut (A) on frame with aligning tab (B) facing inside, then loosely install five flange nuts (C). See Fig 1 .
Install strut fork (D) over driveshaft and onto lower arm. Install front strut in strut fork so aligning tab (B) is aligned with slot in strut fork. See Fig 2 .

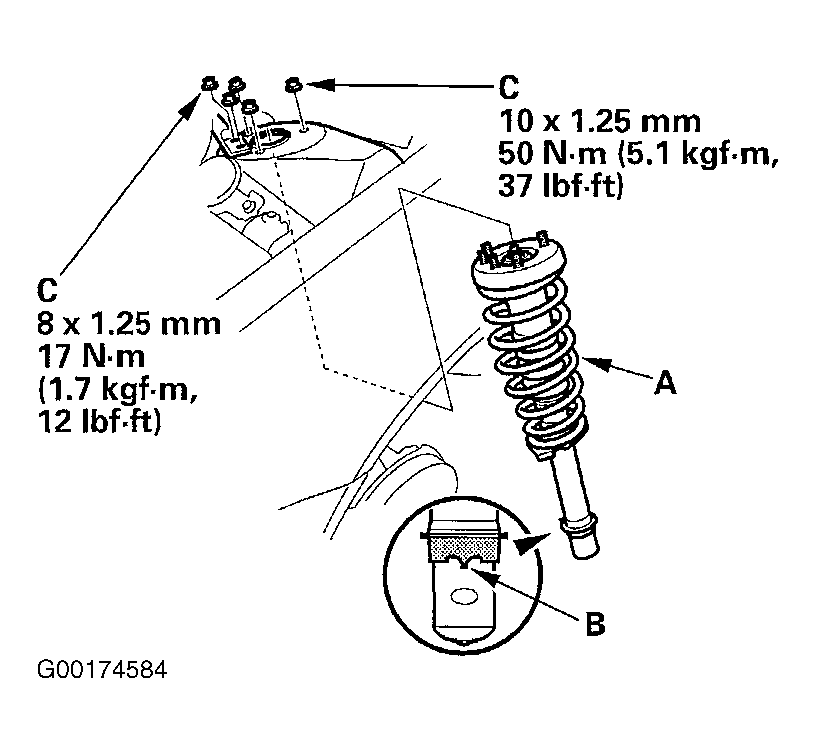

Fig 1: Installing Strut To Frame
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Manufacturer recommends using a new self-locking nut with strut fork pinch bolt.

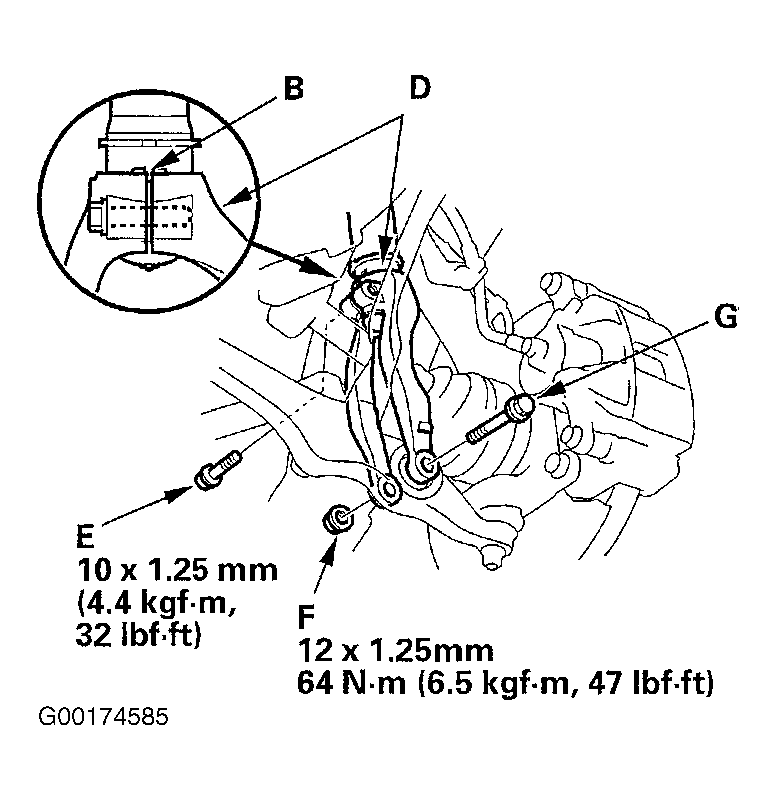

Fig 2: Installing Strut Fork To Lower Arm

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Loosely install strut pinch bolt (E) into strut fork. Loosely install a NEW self-locking nut (F) with flange bolt (G). See Fig 2 .
Raise knuckle with a floor jack until vehicle just lifts off the safety stand. Tighten strut pinch bolt.
Tighten flange bolt and self-locking nut. Tighten flange nuts on top of strut to specified torque. See TORQUE SPECIFICATIONS . Install front wheel.
