Torque Specifications
NOTE:

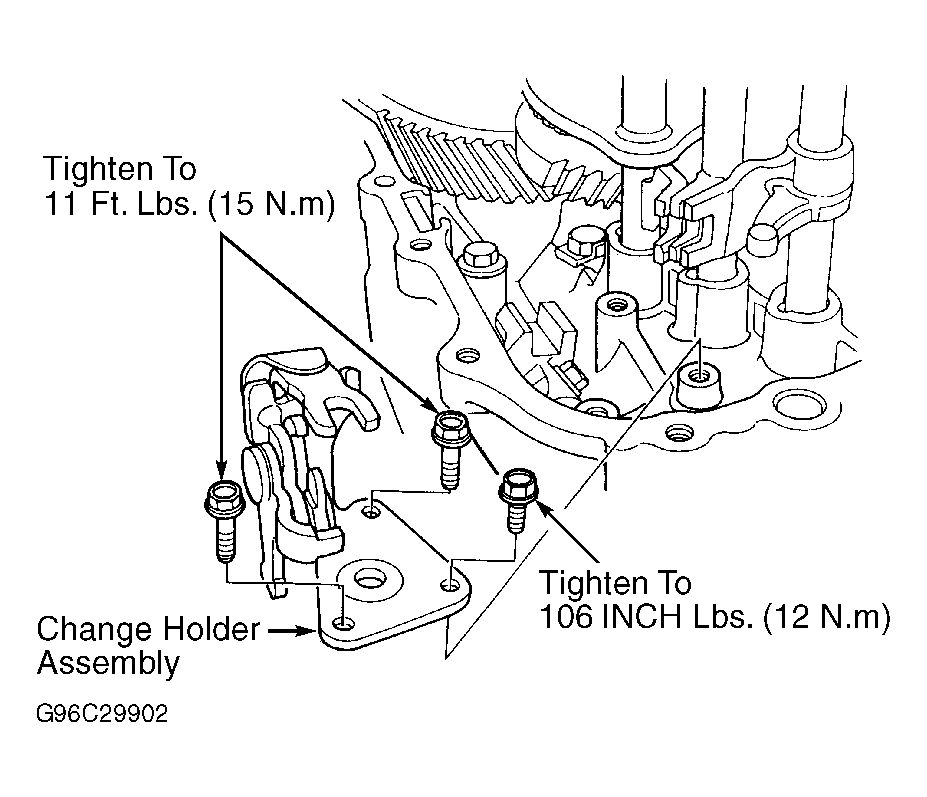

For torque specifications not listed, refer to illustration. See Figure
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |
|---|---|---|
| Back-Up Light Switch Bolt | 18 (24) | |
| Bearing Retainer Plate Bolt | 11 (15) | |
| Change Piece Bolt | 22 (30) | |
| Clutch Cable Bracket Bolt | 18 (24) | |
| Countershaft Lock Nut | 80 (108) | |
| Oil Drain Plug | 30 (40) | |
| Oil Filler Plug | 33 (45) | |
| Reverse Idler Gear Shaft Bolt | 33 (45) | |
| Reverse Shift Lock Bolt | 11 (15) | |
| Shift Arm Special Bolt | 11 (15) | |
| Shift Rod Guide Bolt | 22 (30) | |
| Transaxle Housing Bolt | 21 (28) | |
| Sealing Bolt | ||
| 16-mm | 22 (30) | |
| 28-mm | 40 (54) | |
| 32-mm | 18 (24) | |
| INCH Lbs. (N.m) | ||
| Harness Clamp Bolt | 106 (12) | |
| Shift Arm Bolt (6-mm) | 106 (12) | |
