Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Cruise Control
>>
Component Location Index
Component Location Index

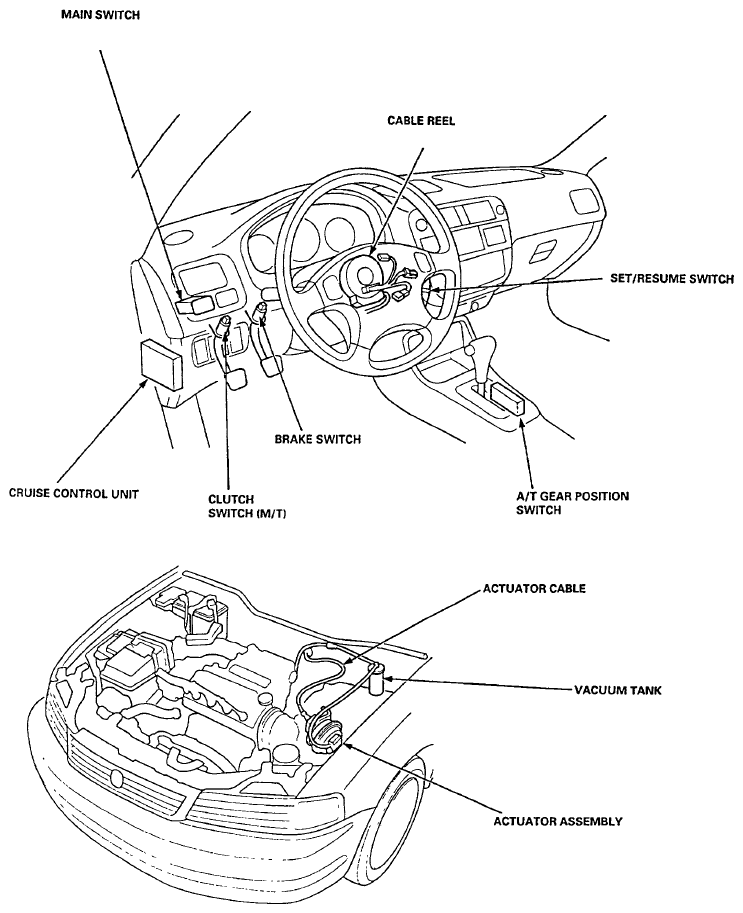

Fig 1: Identifying Cruise Control Component Location (1997 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

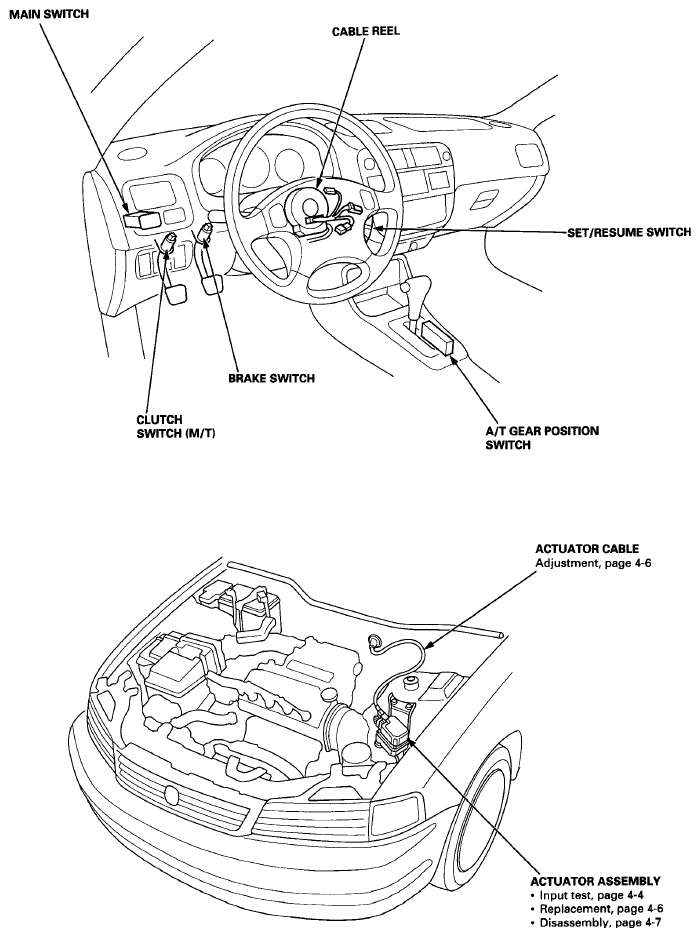

Fig 2: Identifying Cruise Control Component Location (1998-2000 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
