Driver's Power Seat Motor Test

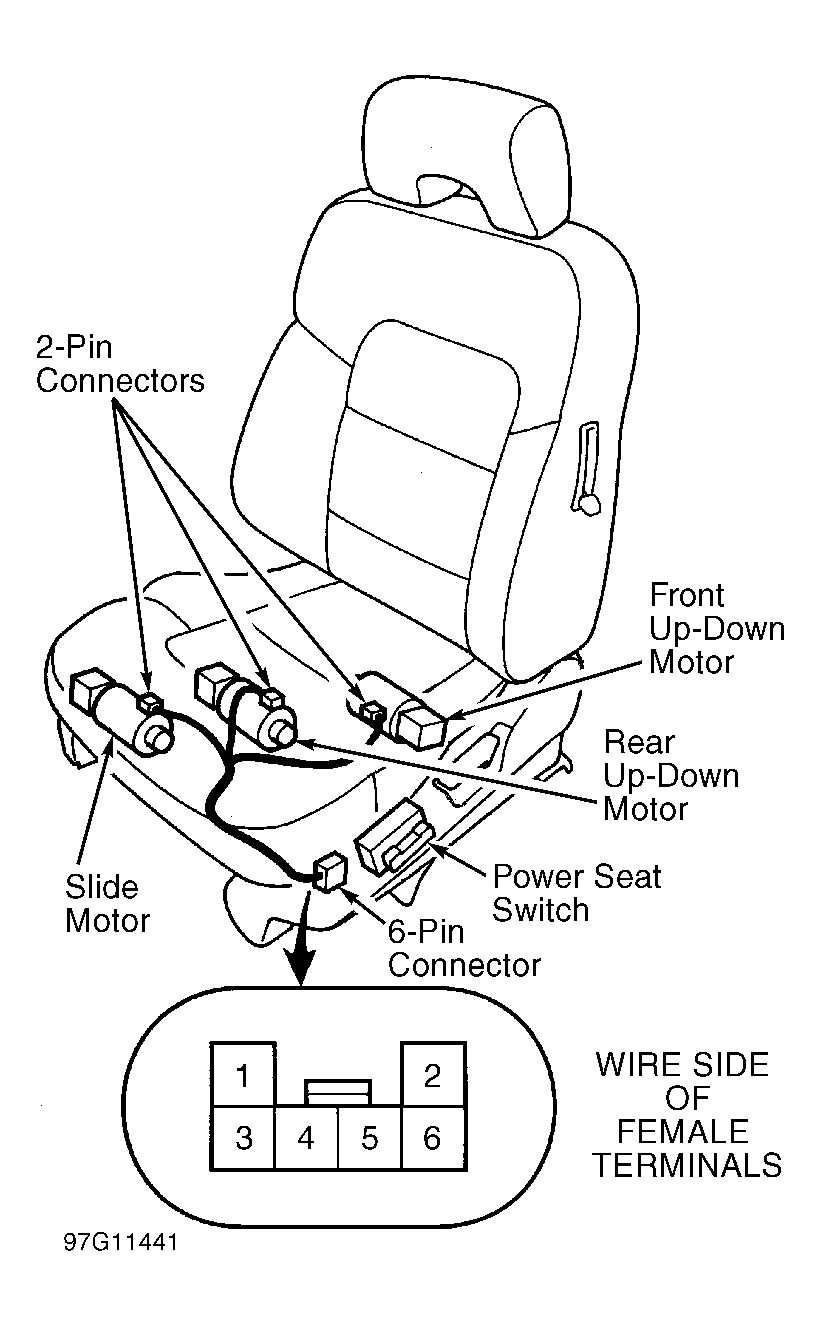

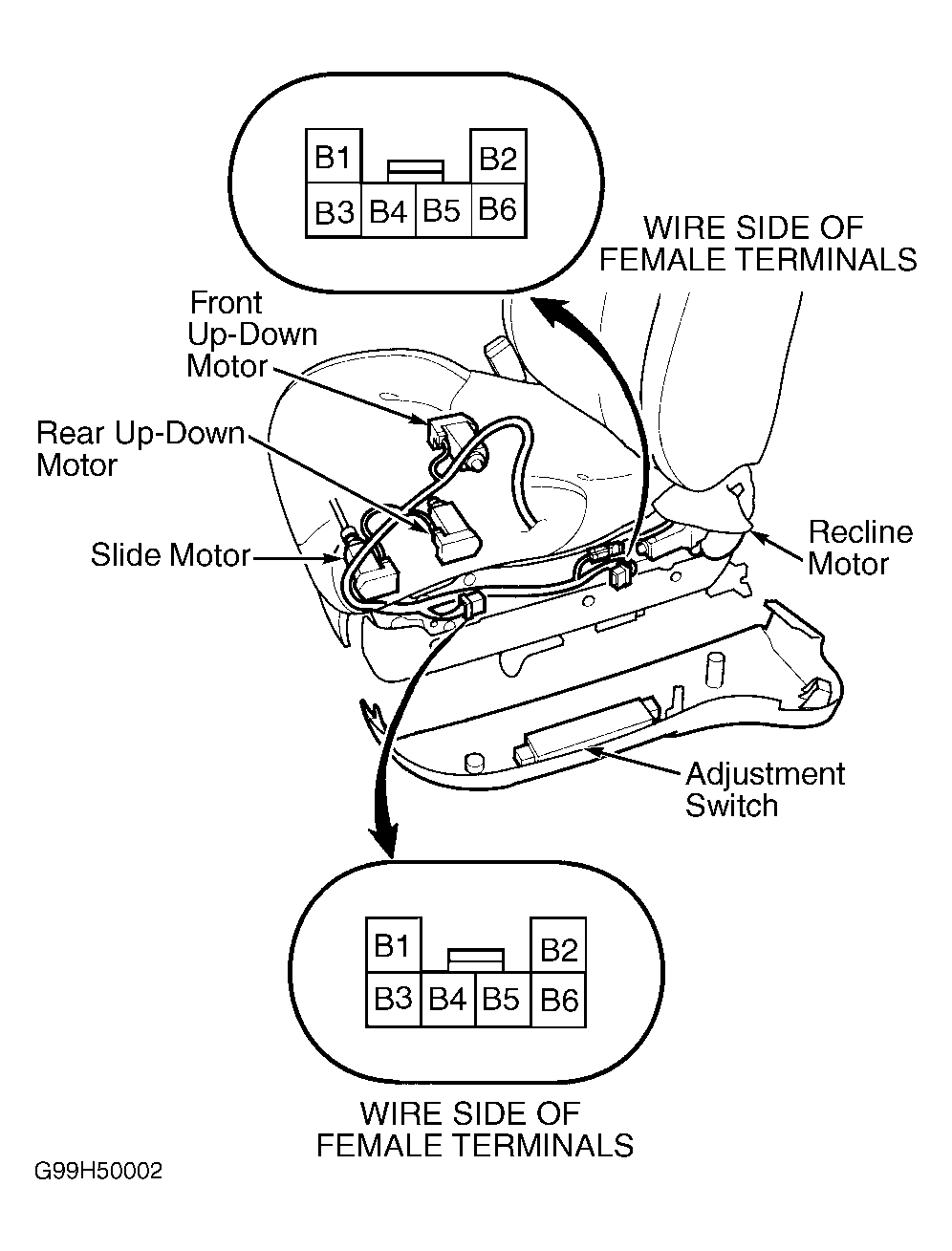

Remove driver's seat. See FRONT SEATS under REMOVAL & INSTALLATION. Disconnect each power seat motor. See Fig 1 , Fig 2 or Fig 3 . Apply battery voltage to each motor as specified in appropriate DRIVER'S POWER SEAT MOTOR TEST table. If any motor fails any portion of test, replace faulty motor.
DRIVER'S POWER SEAT MOTOR TEST (2.3CL)
| Application & Seat Movement | Connect Battery To Terminals (+) & (-) | |
|---|---|---|
| Slide Motor | ||
| Forward | B5 & B1 | |
| Backward | B1 & B5 | |
| Front Up-Down Motor | ||
| Up | B3 & B4 | |
| Down | B4 & B3 | |
| Rear Up-Down Motor | ||
| Up | B2 & B6 | |
| Down | B6 & B2 | |
DRIVER'S POWER SEAT MOTOR TEST (3.0CL)
| Application & Seat Movement | Connect Battery To Terminals (+) & (-) | |
|---|---|---|
| Slide Motor | ||
| Forward | 1 & 2 | |
| Backward | 2 & 1 | |
| Front Up-Down Motor | ||
| Up | 1 & 2 | |
| Down | 2 & 1 | |
| Rear Up-Down Motor | ||
| Up | 1 & 2 | |
| Down | 2 & 1 | |
| Recline Motor | ||
| Forward | 1 & 2 | |
| Backward | 2 & 1 | |
DRIVER'S POWER SEAT MOTOR TEST (3.2TL)
| Application & Seat Movement | Connect Battery To Terminals (+) & (-) | |
|---|---|---|
| Slide Motor | ||
| Forward | A5 & A1 | |
| Backward | A1 & A5 | |
| Front Up-Down Motor | ||
| Forward | A3 & A4 | |
| Backward | A4 & A3 | |
| Rear Up-Down Motor | ||
| Forward | A2 & A6 | |
| Backward | A6 & A2 | |
| Recline Motor | ||
| Forward | B3 & B4 | |
| Backward | B4 & B3 | |
