Keyless Receiver Unit Input Tests

Remove rear seat. Disconnect keyless receiver unit Gray 8-pin connector. Check for open, loose or disconnected terminals. If terminals are bent, loose or corroded, repair as necessary and recheck system. See WIRING DIAGRAMS  . If keyless receiver unit input tests are okay, replace keyless receiver unit and recheck system. See Figure .

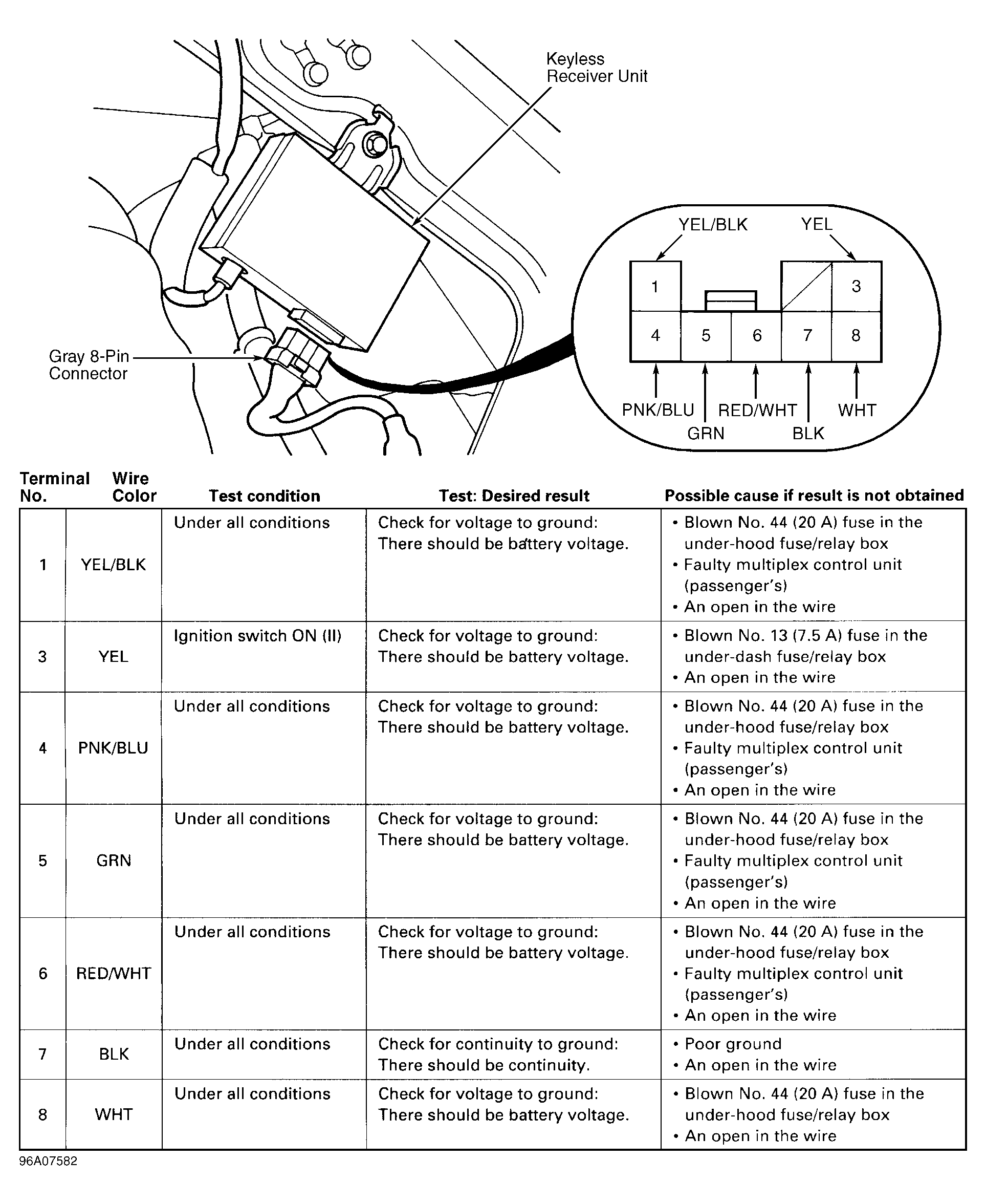

Fig 1: Keyless Receiver Unit Input Tests

Courtesy of AMERICAN HONDA MOTOR CO., INC.
