Diagnostic Circuit Check - Interlock System - Shift Lock System

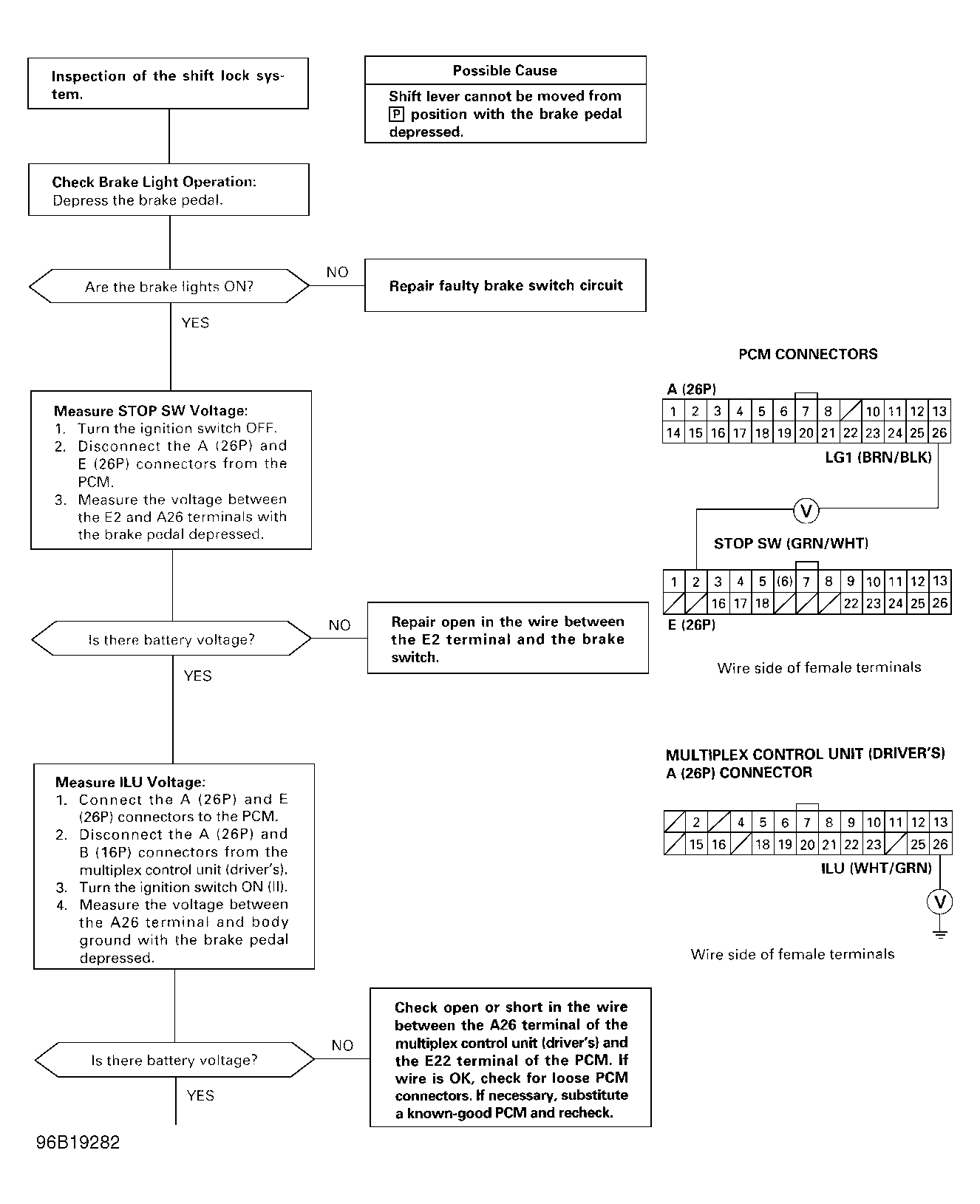

Fig 1: Diagnostic Circuit Check - Interlock System - Shift Lock System - Flow Chart - 1 Of 2
G96B19282

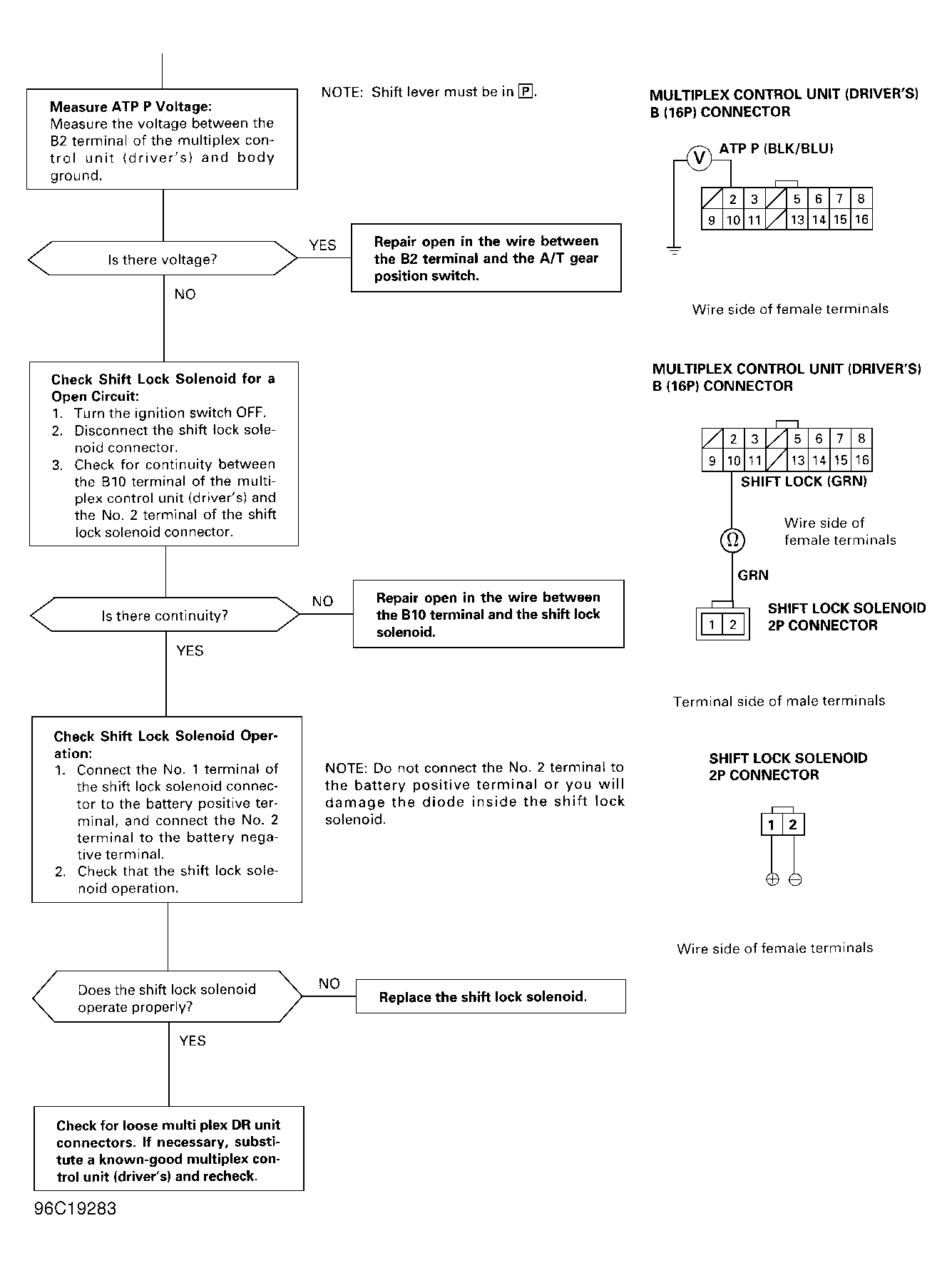

Fig 2: Diagnostic Circuit Check - Interlock System - Shift Lock System - Flow Chart - 2 Of 2
G96C19283
