DTC 8-1 - Abs Function

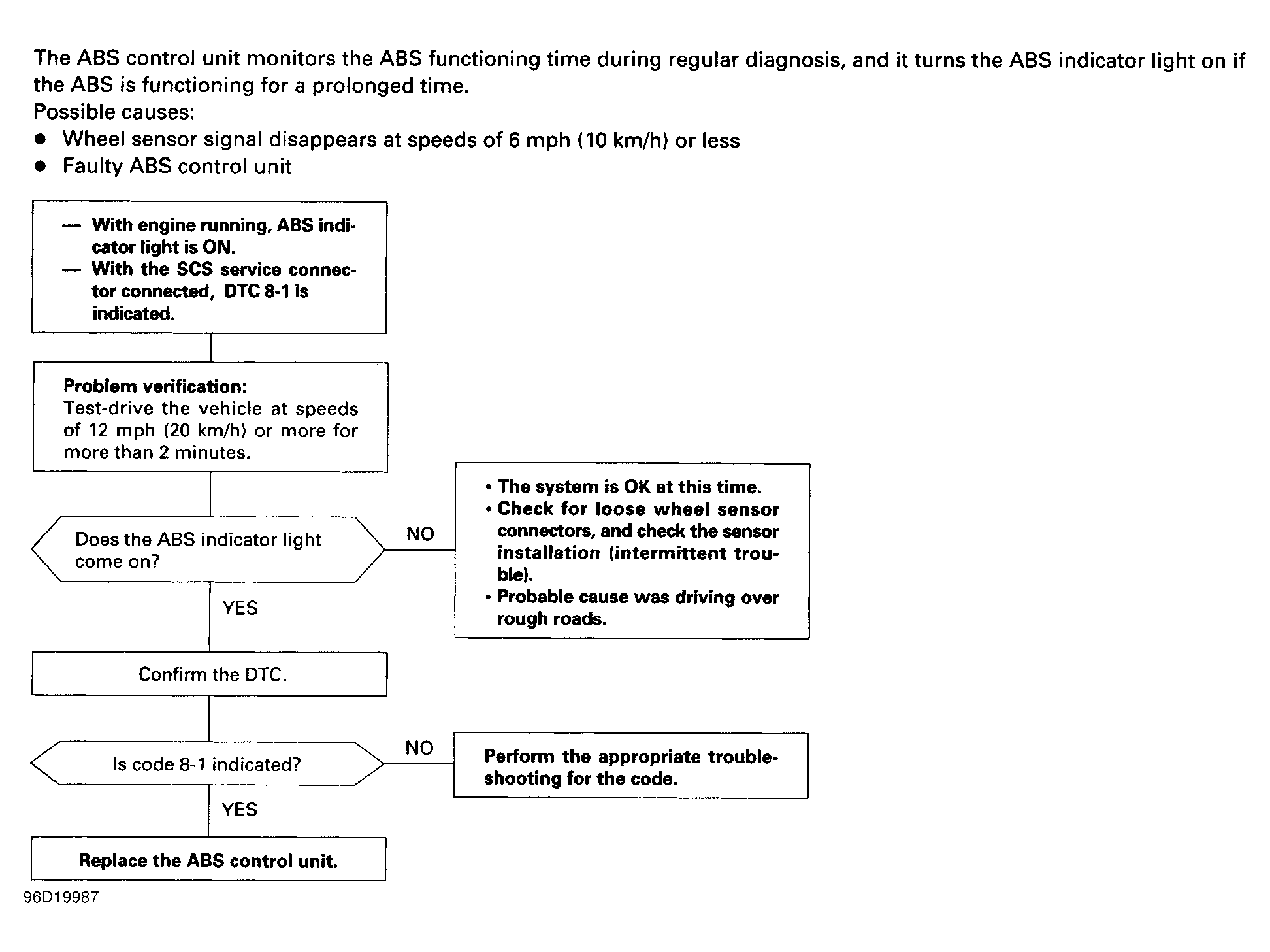

Fig 1: DTC 8-1 - ABS Function

G96D19987

Courtesy of AMERICAN HONDA MOTOR CO., INC.
