Traction Control System
>>
Circuit Tests
>>
DTC 2: Parking Brake
DTC 2: Parking Brake

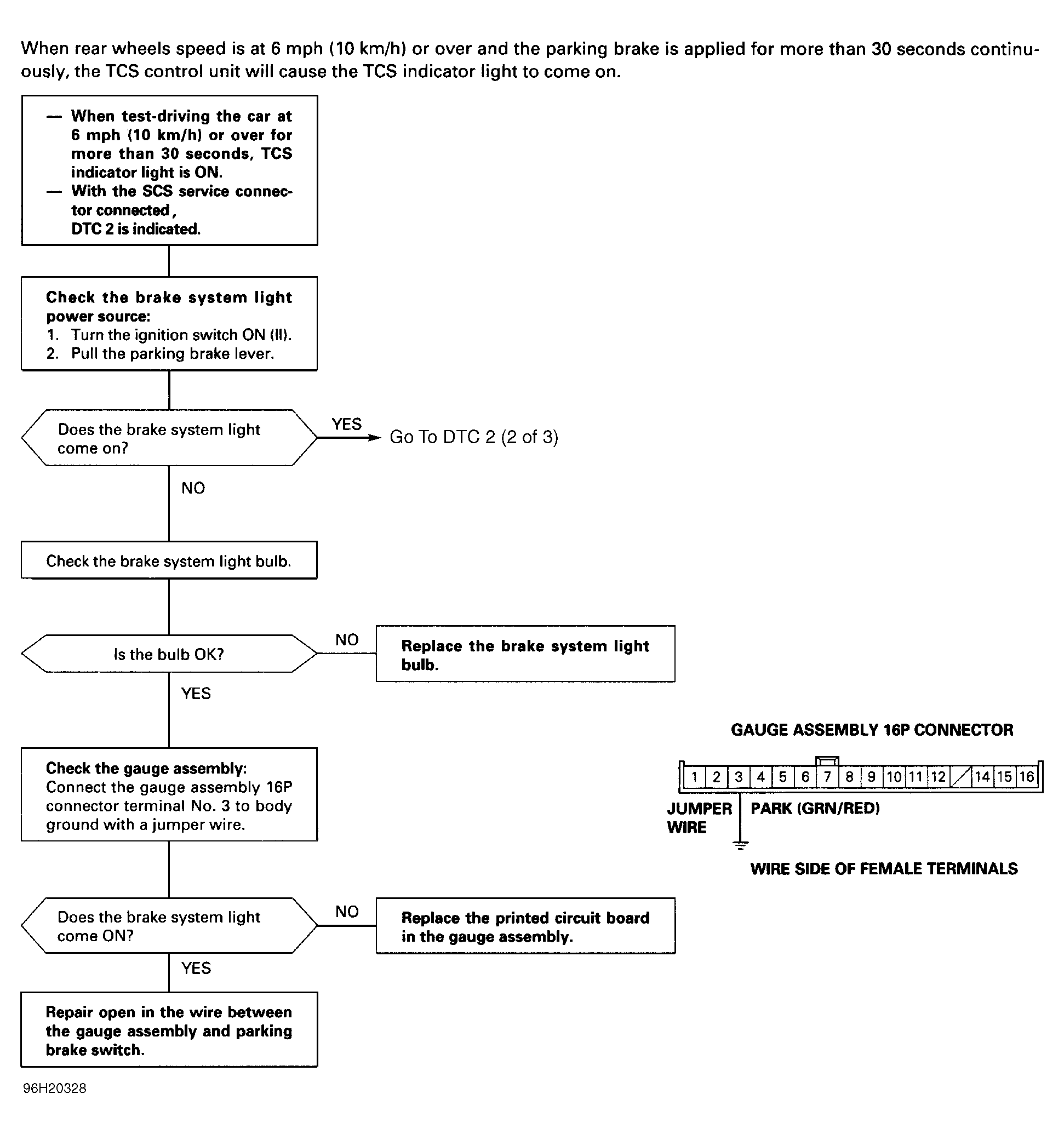

Fig 1: DTC 2: Parking Brake (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

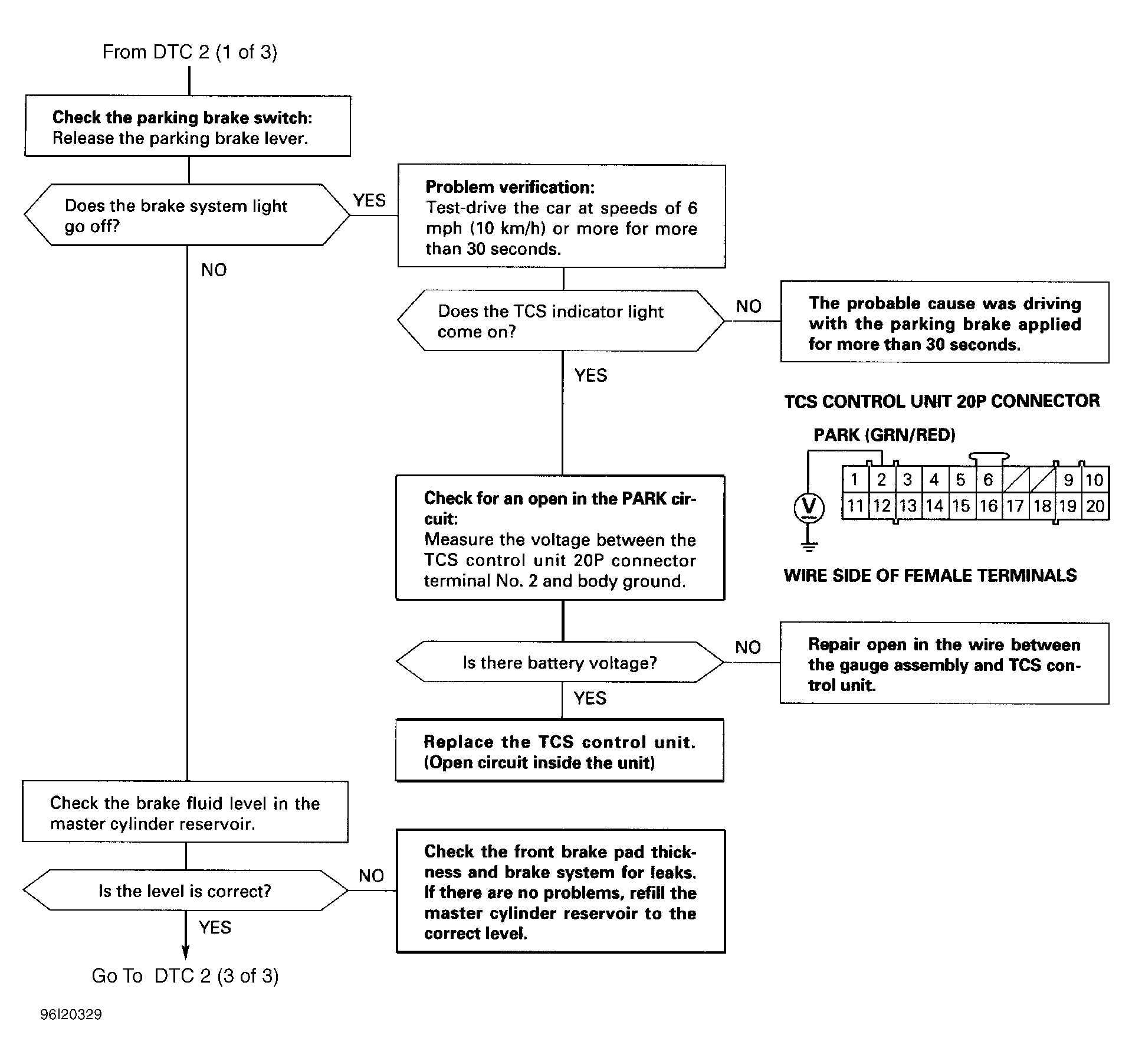

Fig 2: DTC 2: Parking Brake (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

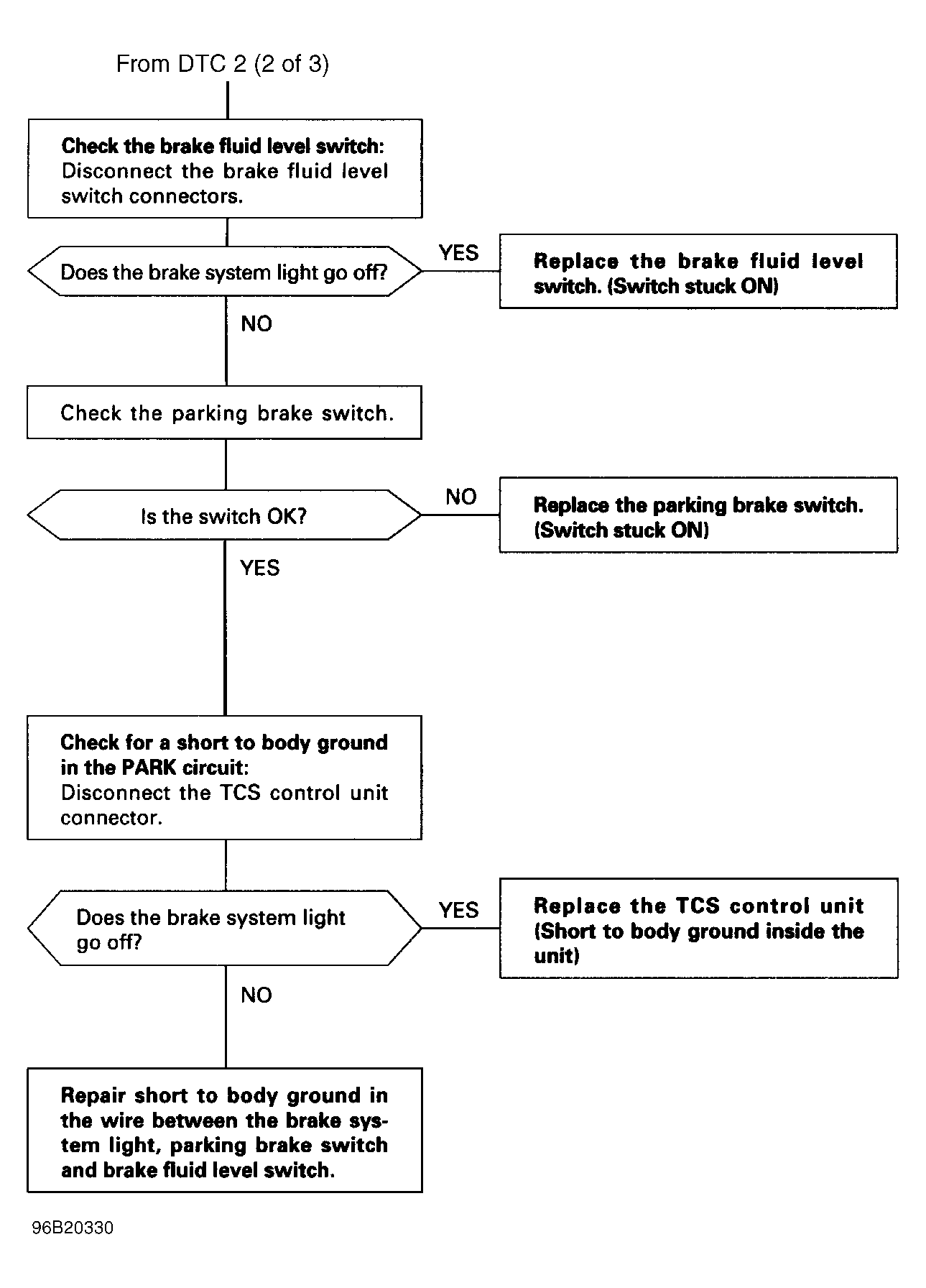

Fig 3: DTC 2: Parking Brake (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
