Driver's Power Seat Switch

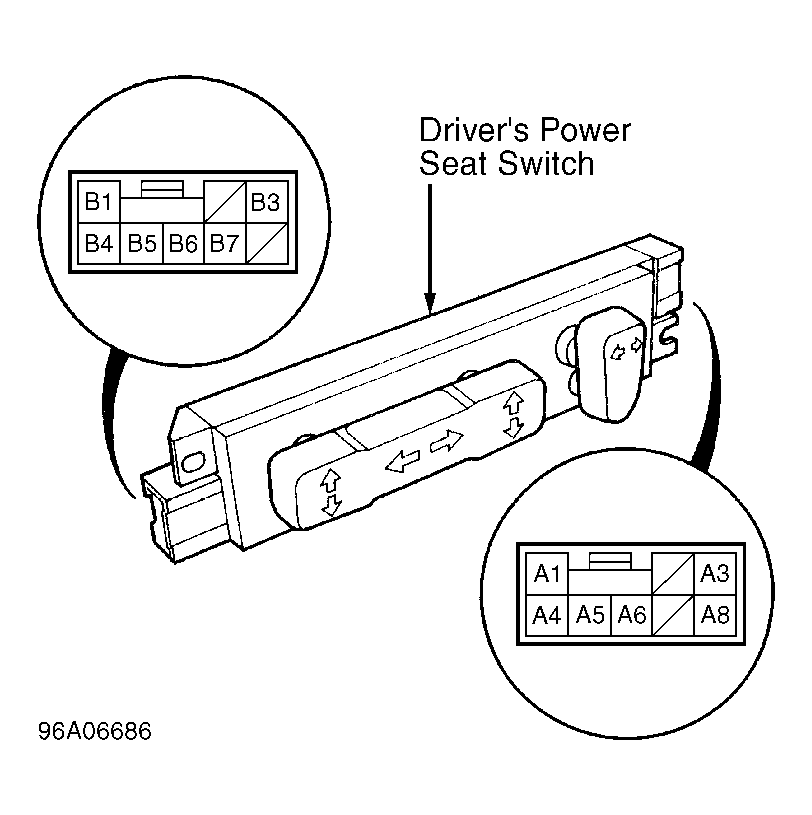

Remove driver's power seat switch. Disconnect driver's power seat switch connectors. Using an ohmmeter, verify continuity is as specified. See DRIVER'S POWER SEAT SWITCH CONTINUITY table. See Fig 1 . If switch fails any test, replace faulty switch.
DRIVER'S POWER SEAT SWITCH CONTINUITY
| Position | Terminals | |
|---|---|---|
| Slide Switch | ||
| Forward | B1 & B7; B3 & B4 | |
| Backward | B1 & B4; B3 & B7 | |
| Recline Switch | ||
| Forward | A4 & A6; A5 & A8 | |
| Backward | A4 & A5; A6 & A8 | |
| Front Up-Down Switch | ||
| Up | B4 & B5; B6 & B7 | |
| Down | B4 & B6; B5 & B7 | |
| Rear Up-Down Switch | ||
| Up | A1 & A4; A3 & A8 | |
| Down | A1 & A8; A3 & A4 | |
