Wiper/Washer Switch Test

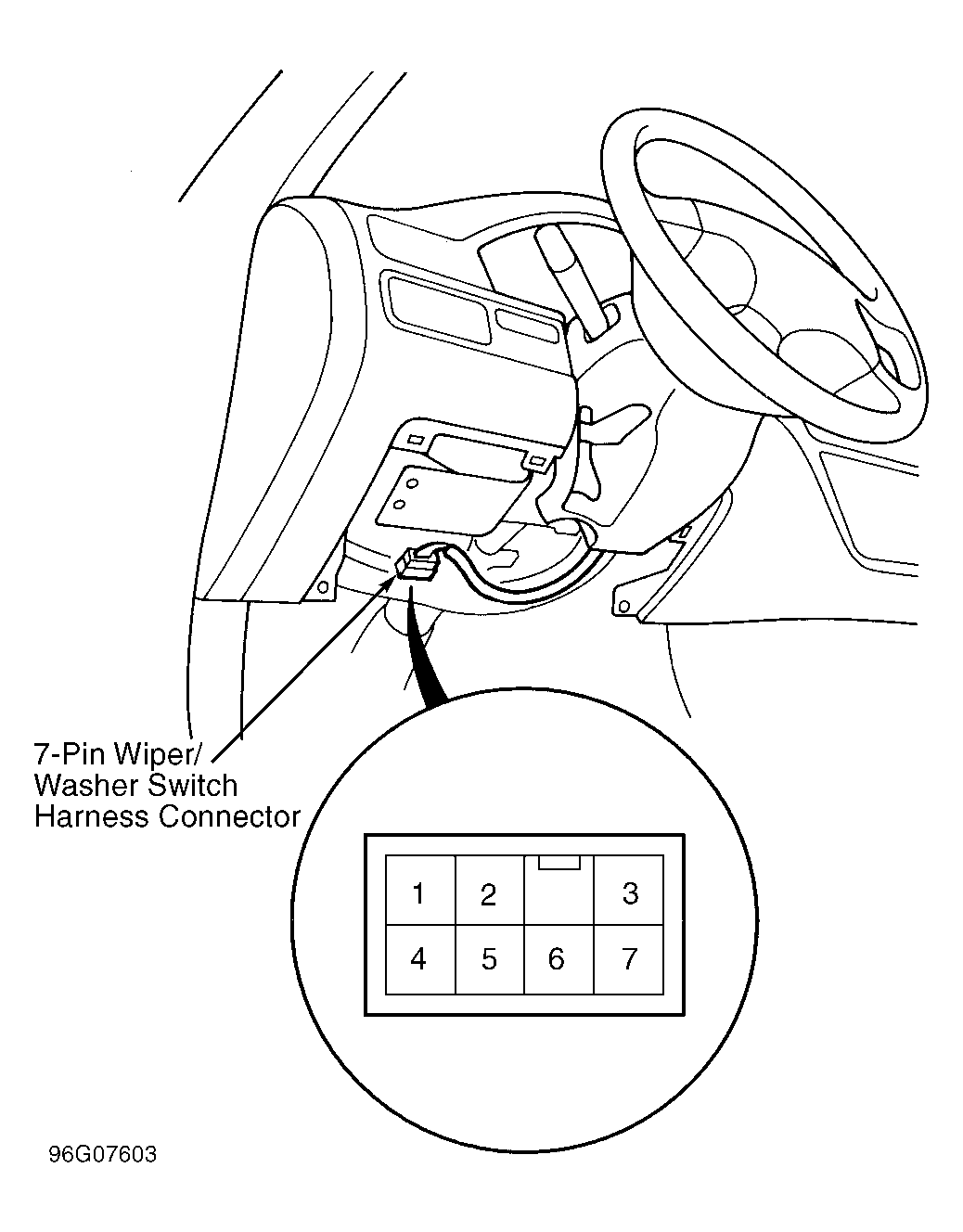

Turn ignition off. Remove lower instrument panel cover and knee bolster. Disconnect 7-pin harness connector from main wire harness. Using an ohmmeter, check for continuity between wiper/washer connector terminals with switch in specified positions. See Fig 1 . See WIPER/WASHER SWITCH CONTINUITY table. Replace wiper/washer switch if it does not test as specified.
WIPER/WASHER SWITCH CONTINUITY
| Switch Position | Between Terminals No. |
|---|---|
| OFF | 4 & 6 |
| INT | 2 & 3; 4 & 6 |
| LO | 1 & 4 |
| HI | 1 & 7 |
| Mist ON | 1 & 7 |
| Washer ON | 2 & 5 |
