Under-Dash Relay Box

NOTE: Under-dash relay box is located behind right side of dash. See Fig 1 .

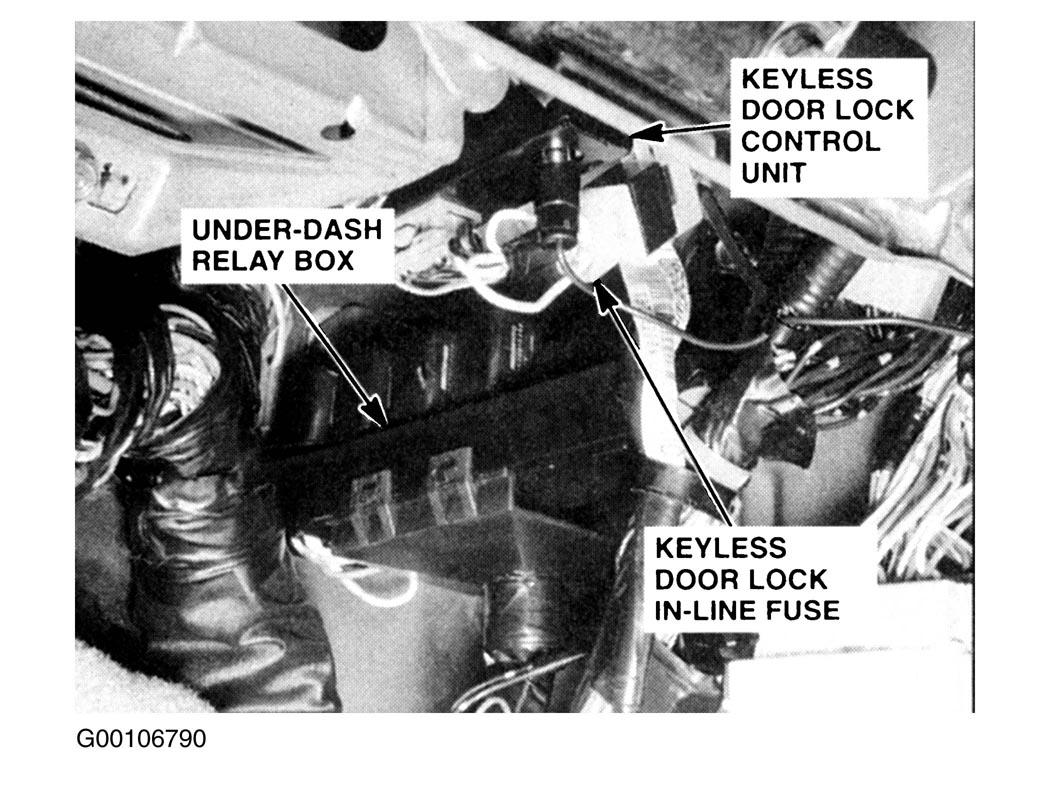

Fig 1: Locating Under-Dash Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

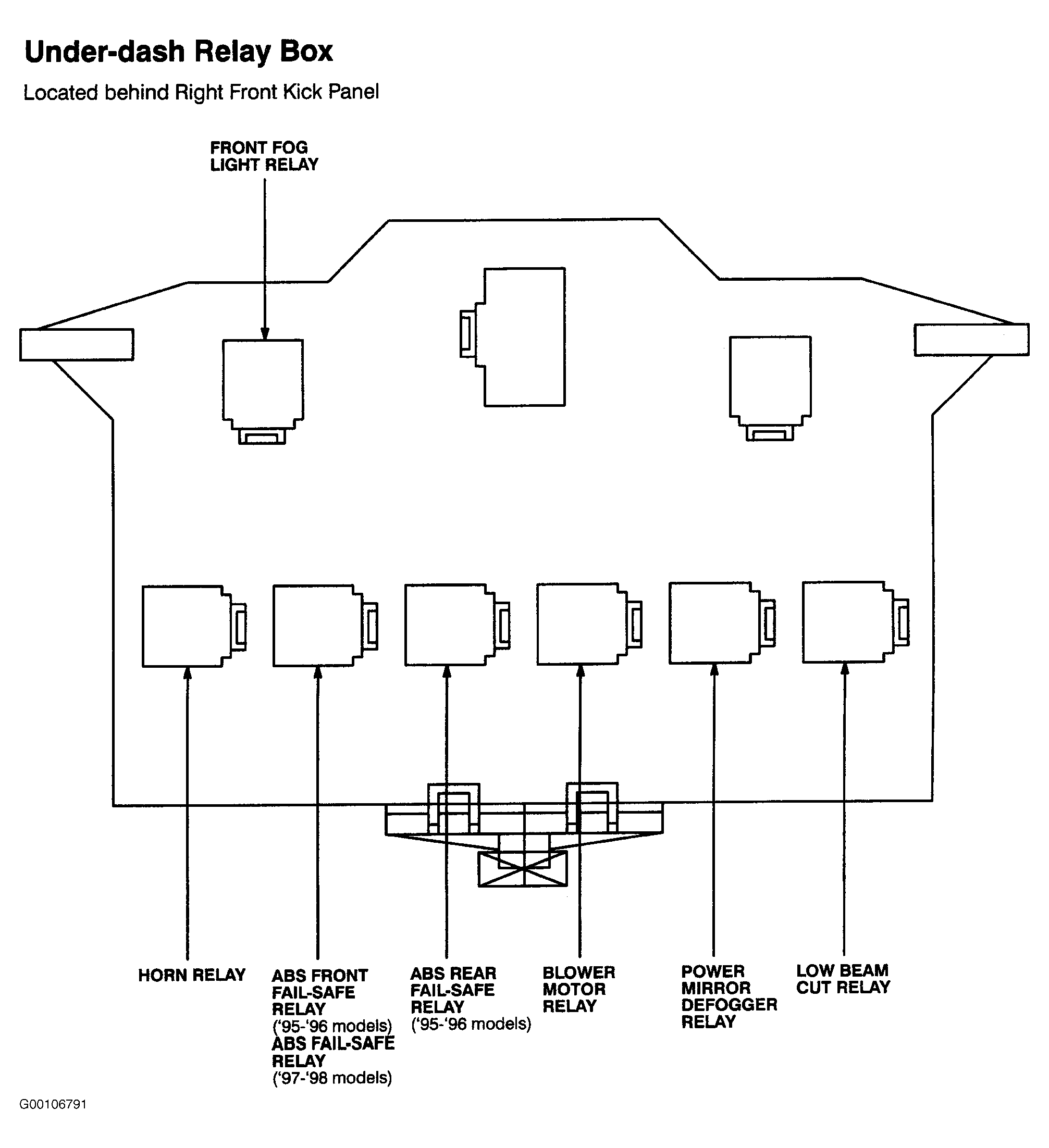

Fig 2: Identifying Under-Dash Relay Box Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
