Recline Motor

Remove seat. Remove seat cushion and seat back. Remove retaining nuts. Remove switch plate and recline motor from recline adjuster. See Fig 1 . To install, reverse removal procedure. Apply thread lock to retaining nuts before tightening.

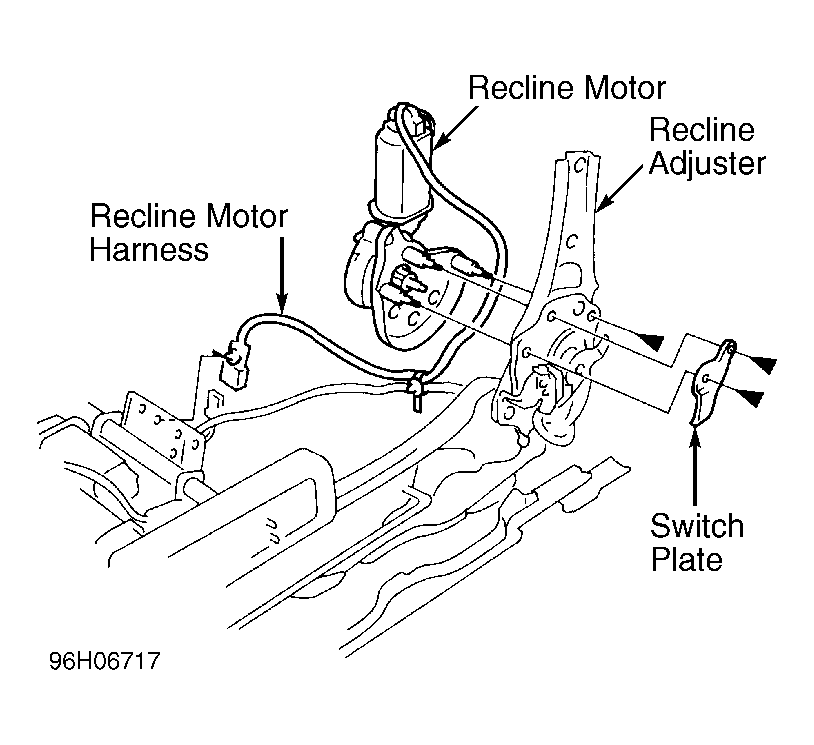

Fig 1: Removing Power Seat Recline Motor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
