Power Mirror Motor Test

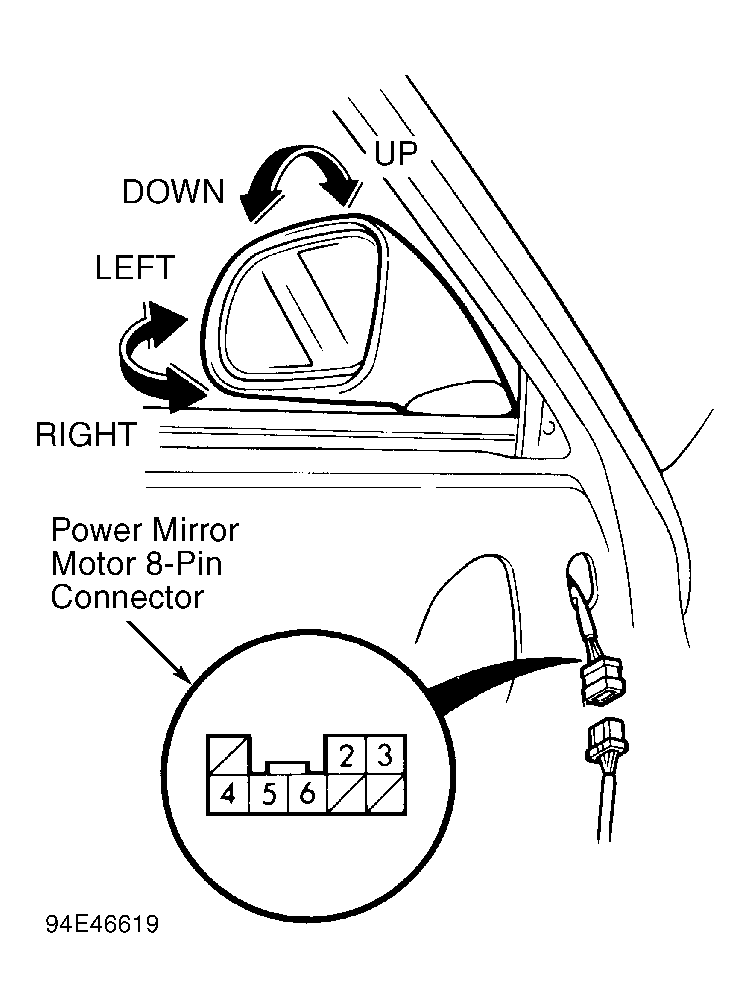

Remove cover panel. Unplug connector. Using fused jumper wires, connect specified terminals to battery voltage and ground. See Fig 1 . Replace motor assembly if operation is not as specified. See POWER MIRROR MOTOR TEST table.
POWER MIRROR MOTOR TEST
| Apply 12 Volts To Pin | Ground Pin | Mirror Operation | |
|---|---|---|---|
| Coupe | |||
| 6 | 5 | Up | |
| 5 | 6 | Down | |
| 5 | 4 | Left | |
| 4 | 5 | Right | |
| 2 | 3 | Defogger On | |
| Sedan | |||
| 8 | 7 | Up | |
| 7 | 8 | Down | |
| 7 | 6 | Left | |
| 6 | 7 | Right | |
| 3 | 4 | Defogger On | |
