Control Unit Input Test
- Turn ignition off. Cruise control unit is located under instrument panel above brake pedal bracket. Unplug cruise control unit 13-pin connector.

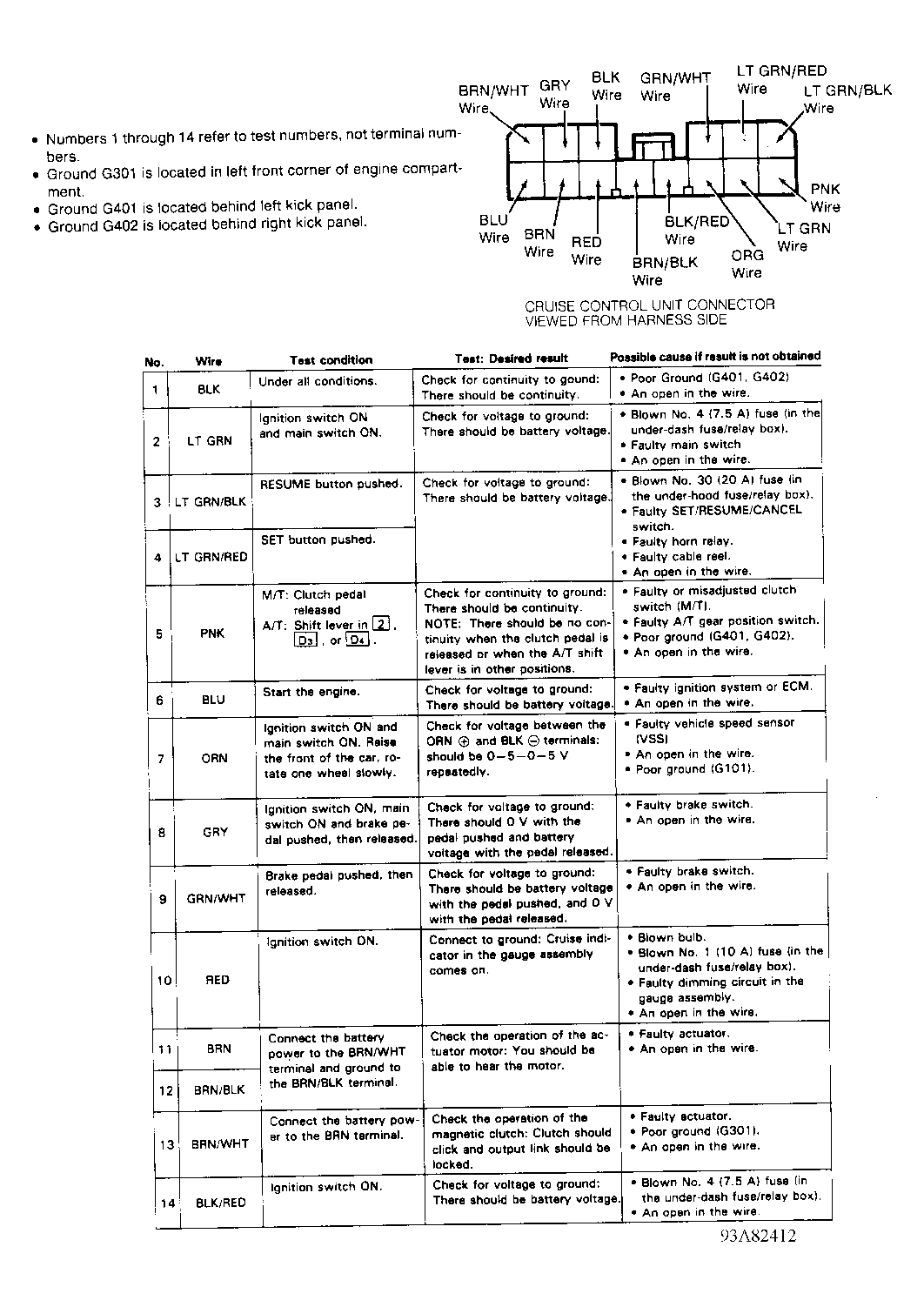

- Using a DVOM, perform cruise control unit input tests in Fig 1 . If all input test results are okay, inspect cruise control unit connector for damage and proper fit. If connector is okay but cruise control still malfunctions, replace cruise control unit.
