Side Marker Light Flasher System

NOTE: See Figure or Figure for connector terminal identification.

For testing procedures, see Fig 1 and Fig 2 .

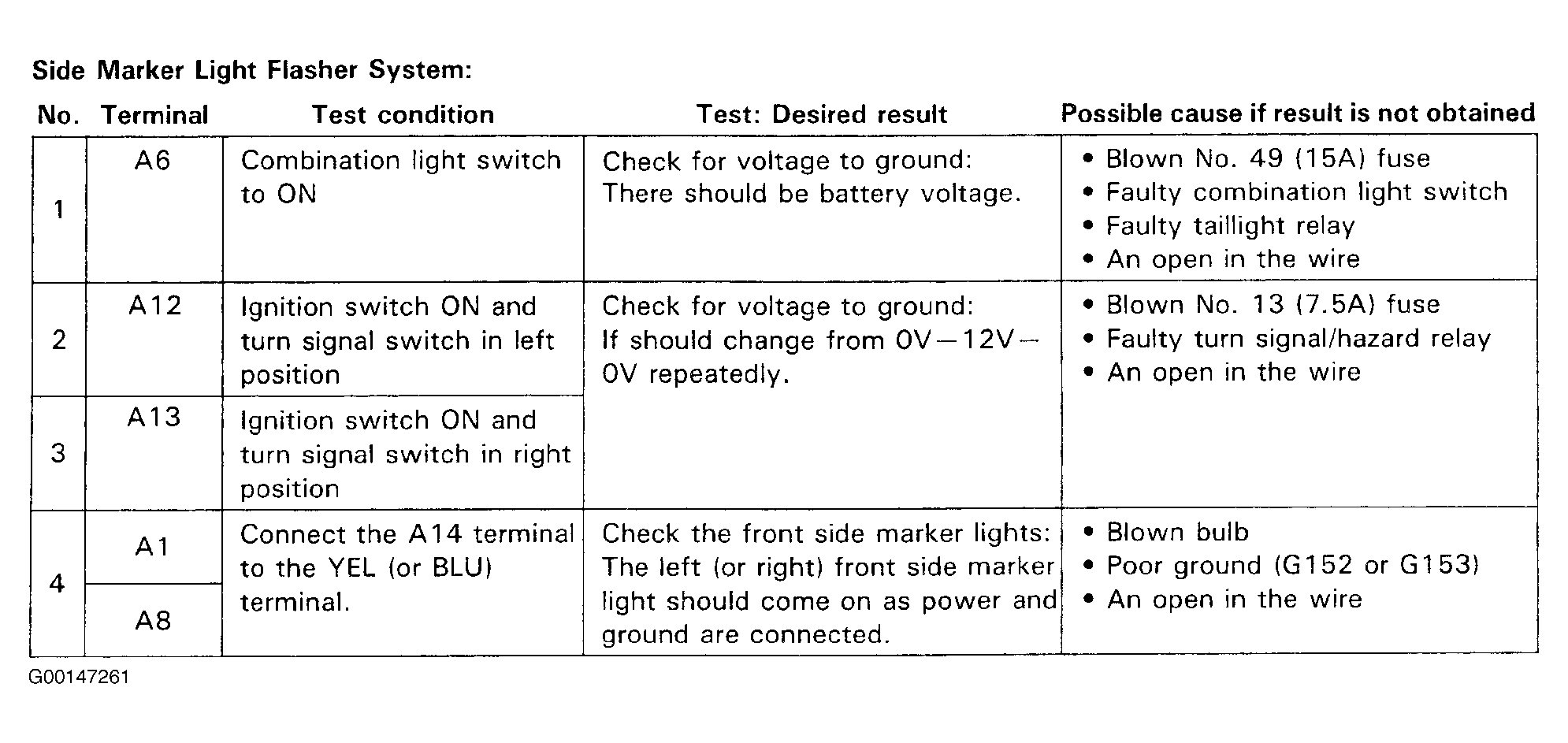

Fig 1: Side Marker Light Flasher System Input Test (Sedan)
G00147261Courtesy of AMERICAN HONDA MOTOR CO., INC.

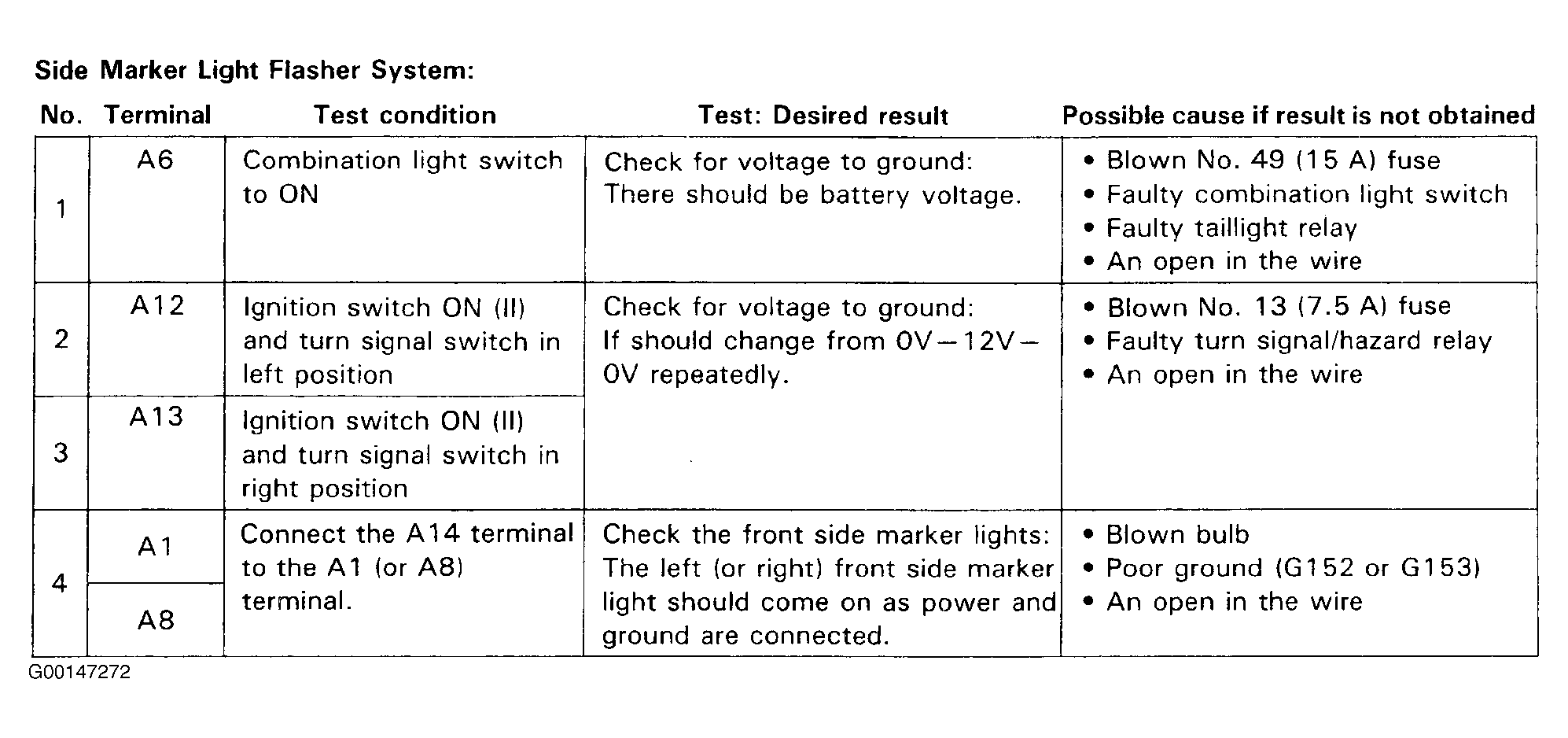

Fig 2: Side Marker Light Flasher System Input Test (Coupe)
G00147272Courtesy of AMERICAN HONDA MOTOR CO., INC.
